Zinc Die Casting, with Increased Clamping Force

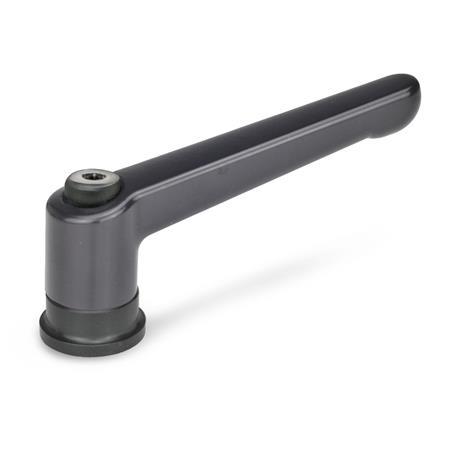

GN 300.4 Adjustable Hand Levers, bushing steel
| l1 | d1 | d3 | d4 | h1 | h3 | h4 Stroke | t min. |
|---|---|---|---|---|---|---|---|
| 63 | M 6 | 24 | 17,5 | 34,5 | 48,5 | 4 | 12,5 |
| 78 | M 8 | 25 | 21 | 39,5 | 58,5 | 4 | 14 |
| 92 | M 10 | 30 | 24 | 46,5 | 68,5 | 4 | 18 |
| 108 | M 12 | 35 | 30 | 56,5 | 82 | 5 | 26,5 |
Filter combination produces no result.
Specification
Handle
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Black, RAL 9011, silk finishSZ
Orange, RAL 2004, textured finishOS
Red, RAL 3000, textured finishRS
Silver, RAL 9006, textured finishSR
Chrome platedCR
Bushing
Steel
Nitrided, blackened
Retaining screw
Steel, blackened
RoHS
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Black, RAL 9011, silk finishSZ
Orange, RAL 2004, textured finishOS
Red, RAL 3000, textured finishRS
Silver, RAL 9006, textured finishSR
Chrome platedCR
Bushing
Steel
Nitrided, blackened
Retaining screw
Steel, blackened
RoHS
Information
Adjustable hand levers GN 300.4 are produced with a clamping area which is linked via a thrust ball bearing (axial ball bearing) to the threaded bushing of the hand lever.
This has led to the following advantages:
- Doubled clamping force through vastly reduced friction.
- There is no movement on the contact area between adjustable handl lever and component which greatly reduces any marking on the clamping area.
- In addition a reduced creep factor has been achieved by the increased preload.
| How to order |
| ||||||
GN 300.4-78-M8-SW |
