Screw-In Type

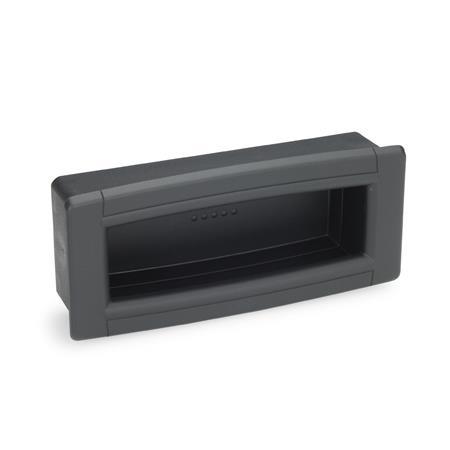

GN 739 Gripping Trays, plastic
ELESA original design ERB.

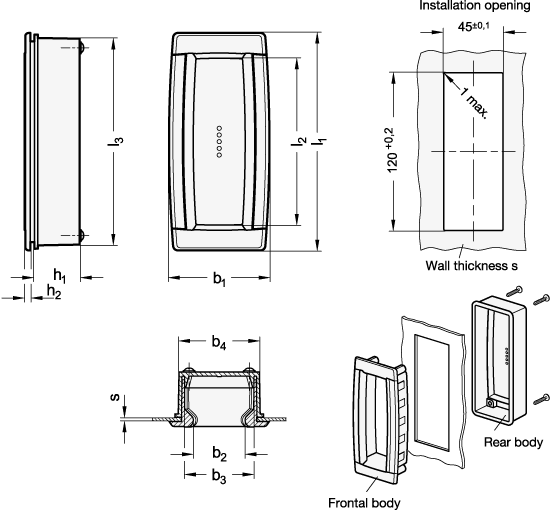

| l1 | b1 | b2 | b3 | b4 | h1 | h2 | l2 | l3 | s |
|---|---|---|---|---|---|---|---|---|---|
| 130 | 59 | 31 | 41 | 48 | 29,5 | 3 | 100 | 124 | 1 ... 5 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Color:
Black-gray, RAL 7021, matte finishSG
White, RAL 9002, matte finishWS
Self-tapping screws ISO 7049
Steel, zinc plated ST 3,5-20
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
Color:
Black-gray, RAL 7021, matte finishSG
White, RAL 9002, matte finishWS
Self-tapping screws ISO 7049
Steel, zinc plated ST 3,5-20
RoHS
Information
The design of the GN 739 gripping trays matches the product family of Ergostyle®. These gripping trays are means for opening and closing sliding doors.
The installation opening for the gripping tray must be created according to the dimensions given in the table.
For mounting, the front body is first inserted into the opening of the housing and then the rear body is pushed up from behind to the housing wall. Finally, both parts are screwed together.
