Bushing Brass

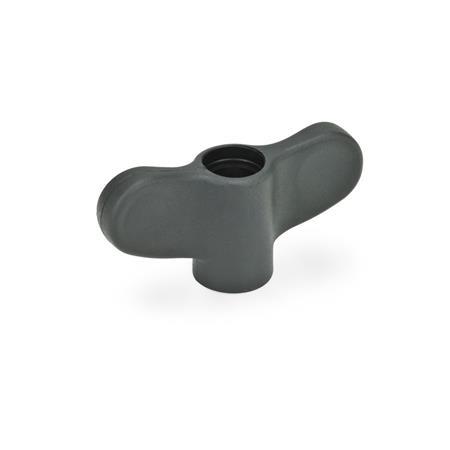

GN 634 Wing Nuts without Cover Cap
ELESA original design EWN.FP
Type
| D | With threaded through bore |
| d1 | d2 | d3 | d4 | d5 | b | h1 | h2 | h3 | h4 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | M 5 | M 6 | M 8 | 13,5 | 8,5 | 10 | 6 | 20 | 4 | 12 | 18 |
| 48 | M 5 | M 6 | M 8 | 13,5 | 8,5 | 10 | 7 | 24 | 5,5 | 12 | 22 |
| 55 | M 6 | M 8 | - | 16 | 10,5 | 12 | 8 | 28 | 6,5 | 18 | 25 |
| 63 | M 8 | M 10 | - | 19 | 10,5 | 14 | 9 | 32 | 7,5 | 20 | 29 |
| 70 | M 8 | M 10 | - | 20 | 13 | 15 | 10 | 36 | 8 | 20 | 32 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Black-gray, similar RAL 7021, matte finish
Bushing
Brass
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
Black-gray, similar RAL 7021, matte finish
Bushing
Brass
RoHS
Information
Design and handling of the wing nuts GN 634 comply with the requirements and claims of the Ergostyle® product family.
see also...
| How to order |
| ||||||
GN 634-48-M5-D |
