Plastic

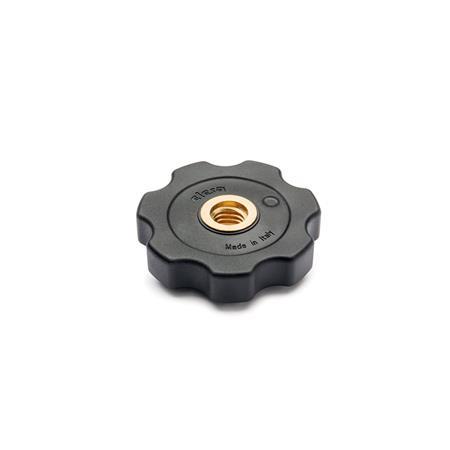

GN 567 Star Nuts
ELESA original design GFL
| d1 | d2 | d3 | d4 | h | k |
|---|---|---|---|---|---|
| 40 | M 8 | 12 | 25 | 10 | 8,5 |
| 40 | M 10 | 13 | 25 | 10 | 8,5 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Brass
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finishSW
Bushing
Brass
RoHS
On request
Other thread diameters
Information
Star nuts GN 567 can be used to lock and secure and require minimal space.
The ergonomic shape makes them easy to grip during use.
| How to order |
| ||||||
GN 567-40-M8-SW |
RoHS compliant:
-
-
Weight:
-
-
