Steel, Zinc Plated

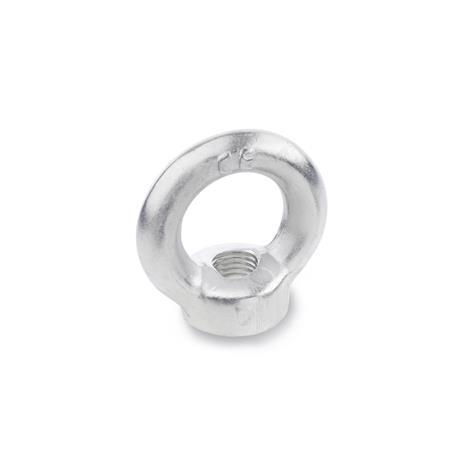

DIN 582 Lifting Eye Nuts
| d1 | d2 | d3 | d4 | e | h | k | m | F1 max. in N | F2 max. in N | F3 max. in N |
|---|---|---|---|---|---|---|---|---|---|---|
| M 8 | 20 | 36 | 20 | 8,5 | 36 | 8 | 10 | 1400 | 1000 | 700 |
| M 10 | 25 | 45 | 25 | 10 | 45 | 10 | 12 | 2300 | 1700 | 1150 |
| M 12 | 30 | 54 | 30 | 11 | 53 | 12 | 14 | 3400 | 2400 | 1700 |
| M 16 | 35 | 63 | 35 | 13 | 62 | 14 | 16 | 7000 | 5000 | 3500 |
| M 20 | 40 | 72 | 40 | 16 | 71 | 16 | 19 | 12000 | 8600 | 6000 |
| M 24 | 50 | 90 | 50 | 20 | 90 | 20 | 24 | 18000 | 12900 | 9000 |
| M 30 | 65 | 108 | 60 | 25 | 109 | 24 | 28 | 32000 | 23000 | 16000 |
| M 36 | 75 | 126 | 70 | 30 | 128 | 28 | 32 | 46000 | 33000 | 23000 |
Filter combination produces no result.
Specification
SteelST C15 E
RoHS
- Drop-forged
- Annealed
- Contact face machined
- Zinc plated, blue passivated
RoHS
Information
The following guidelines of the lifting eye nuts DIN 582 have to be observed in addition to the load values given in the above table.
The eye nut must be of fully screwd in to achieve a perfect contact between the two mating faces.
Both threads must be of a equal length and the base material of equal strength to that of the nut.
Operating instructions with more details and specifications are included with every delivery (see also www.ganternorm.com/en/service).
The official DIN standard sheet specifies the additional sizes M42, M48, M56, M64, M72 x 6, M80 x 6 und M100 x 6.
