Plastic

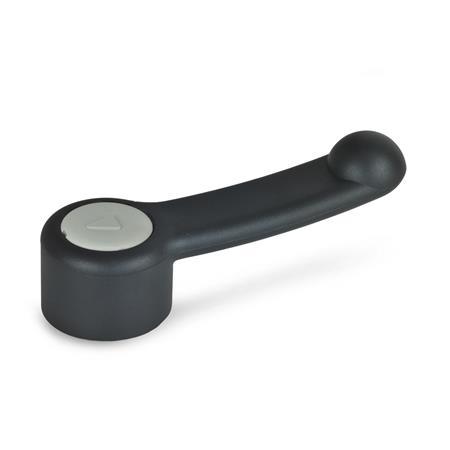

GN 623.5 Gear Levers, bushing Stainless Steel
ELESA original design ELC.SST
Bore code
| B | Without keyway |
| K | With keyway |
| V | With square |
| d1 | d2 Bore H7 Square H11 | d3 | d4 | d5 | d6 | d7 | b | h1 | h2 | h3 | h4 | h5 | h6 | k | l | r | s | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 6 | 15 | 22,5 | 16 | 10 | 4 | 20 | 24 | 35 | 24 | 18 | 2 | 3 | 24 | 67 | 12 | 4,3 | 9 |
| 37 | 8 | 18 | 26 | 20 | 13,5 | 5 | 23 | 27 | 42 | 28 | 20 | 2,5 | 5 | 26 | 85 | 13,8 | 4,3 | 12,5 |
| 46 | 12 | 22 | 31,5 | 25,5 | 17 | 6 | 29 | 35 | 54 | 36 | 24 | 2 | 8 | 32 | 110 | 17,5 | 6,5 | 15,5 |
| 54 | 14 | 26 | 36 | 31 | 21 | 8 | 34 | 38 | 60 | 38 | 29,5 | 2,5 | 6 | 39 | 140 | 20,2 | 7,3 | 16 |
Filter combination produces no result.
Specification
Plastic
Bushing
Stainless steel AISI 303
Color of the cover cap:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
Gray with arrow, RAL 7035, matte finishPGR
ISO Fundamental Tolerances
Keyway P9 DIN 6885 Page 1
Squares DIN 79
Stainless Steel Characteristics
Plastic Characteristics
RoHS
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black-gray, matte, similar to RAL 7021
Bushing
Stainless steel AISI 303
Color of the cover cap:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
Gray with arrow, RAL 7035, matte finishPGR
ISO Fundamental Tolerances
Keyway P9 DIN 6885 Page 1
Squares DIN 79
Stainless Steel Characteristics
Plastic Characteristics
RoHS
Information
Design and handling of the gear levers GN 623.5 comply with the requirements and claims of the Ergostyle® product family.
The cap covers attachment elements (see installation example) as well as protruding or recessed shafts.
see also...
| How to order |
| ||||||||
GN 623.5-46-B12-DSG |
