Technopolymer, with Protruding Steel Bushing
GN 6336.2 Star Knobs

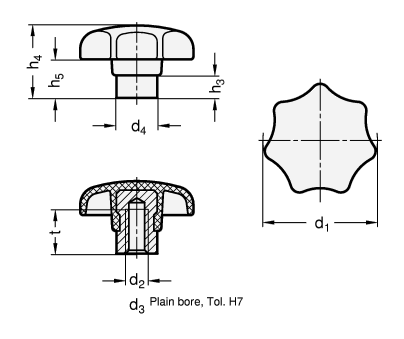

Type
| E | With threaded blind bore |
| C | With plain blind bore H7 |
| d1 | d2 Type E | d3 H7 Type C | d4 | h1 | h2 | h3 | t min. | ||
|---|---|---|---|---|---|---|---|---|---|
| 25 | M 5 | - | - | - | 10 | 16 | 8 | 6 | 9,5 |
| 32 | M 6 | - | B 6 | - | 12 | 20 | 10 | 8,5 | 12 |
| 40 | M 6 | M 8 | B 6 | B 8 | 14 | 26 | 13 | 10 | 14 |
| 50 | M 8 | M 10 | B 8 | B 10 | 18 | 32 | 17 | 10 | 18 |
| 63 | M 10 | M 12 | B 10 | B 12 | 20 | 40 | 21 | 14 | 22 |
| 80 | M 12 | M 16 | B 16 | - | 25 | 52 | 27 | 15 | 30 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamid PA)
Bushing
Steel
Zinc plated, blue passivated
RoHS
Technopolymer (Polyamid PA)
- Reinforced
- Black, matte finish
Bushing
Steel
Zinc plated, blue passivated
RoHS
Information
Star knobs GN 6336.2 with bushing have important advantages:
The face of the bushing is exactly square to the bore and is with the complete diameter out of steel. The protruding steel bushing allows a perfect cross-dowels connection.
| How to order |
| ||||||
GN 6336.2-50-B10-C |
