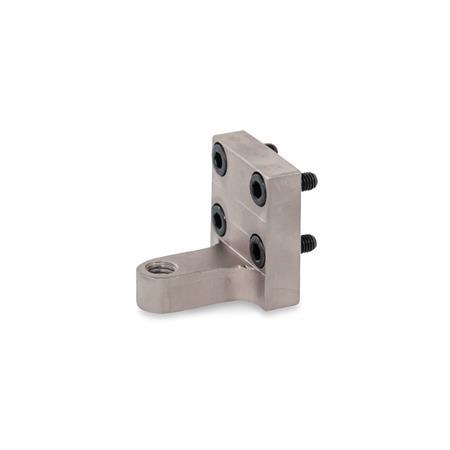

GN 867.1 Static Holders for Clamping Bolts

Static Holders for Clamping Bolts GN 867.1 sketch

Type

E	for one clamping bolt
Z	for two clamping bolts

Show filter

b -0,2	d₁	d₂ H8/h6	d₃	h₁	h₂	l₁	l₂	l₃	l₄	m₁	m₂	m₃	m₄	m₅

32	M 8	7	M 5	10	10	38	17	37	7,5	22	17	15	31,5	17
42	M 10	9	M 6	12	12	54,5	17	50,5	10	30	25	19,5	45,9	23
52	M 12	11	M 8	14	14	63	17	61	13,5	37	30	23,5	53	30
62	M 12	13	M 10	16	16	73,5	20	83	13,5	44	47	27	63,5	40

Filter combination produces no result.

Specification

Steel C 45
Chemically nickel platedNC

Socket cap screws DIN 912,
Centering guide bushings
Steel, blackened

https://www.youtube.com/watch?v=FpaDoyV4mDg

ISO Fundamental Tolerances

RoHS

Information

Static holders GN 867.1 have been designed for use with power clamps GN 864.

Static holders with two clamping bolts (type Z) are preferably used for rigid clamping of sheet metal components. For the same purpose ball point screws GN 605 with serrated ball pads are ideally suited.

Socket cap screws and centering guide bushings are included.
