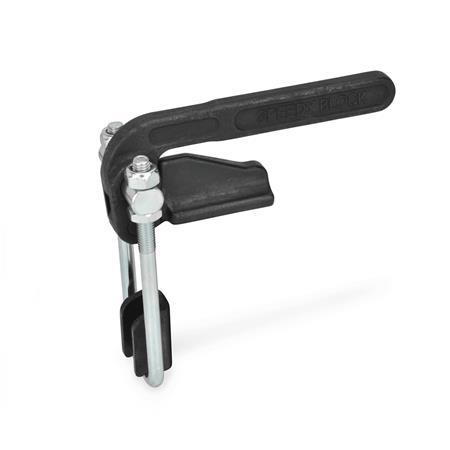

GN 852.1 Latch Type Toggle Clamps, Steel, blackened

T	With mounting holes, without U-bolt latch, with catch
T3	With mounting holes, with U-bolt latch, with catch
TS	For welding, without U-bolt latch, with catch
T3S	for welding, with U-bolt latch, with catch

Show filter

Size	F_H in N Holding capacity	a₁	a₂	b₁	b₂	b₃	b₄	b₅	b₆	b₇	d₁	d₂	d₃

1400	12000	15	29	61	61	46	26	64	42	26	M 10	8,5	32,5

Filter combination produces no result.

Size	h₁ ≈	h₂	l₁ ≈	l₂ min.	m₁	m₂	m₃	m₄	m₅	r ≈ at w₂ = 0	s	w₁ Stroke	w₂ ≈ Adjustable range

1400	64	24	171	42	38	14,5	32	12,5	17	109	8	50	22

Filter combination produces no result.

Specification

Body / Clamping lever
Steel C22

Catch

Square U-bolt / Bearing pins
Steel St 37
Zinc plated, blue passivated

All moving parts
Lubricated with special grease

RoHS

The square U-bolt of latch type toggle clamps GN 852.1 is adjustable within the adjusting range.

In the clamped position the square U-bolt is perpendicular to the clamping arm and the fixing plane of the latch type toggle clamp.

In addition to the standard lengths of the square U-bolt shown in the table, a variety of other lengths are also available under the GN 951.2 series.

RoHS compliant: Info
