Plastic, Adjustable

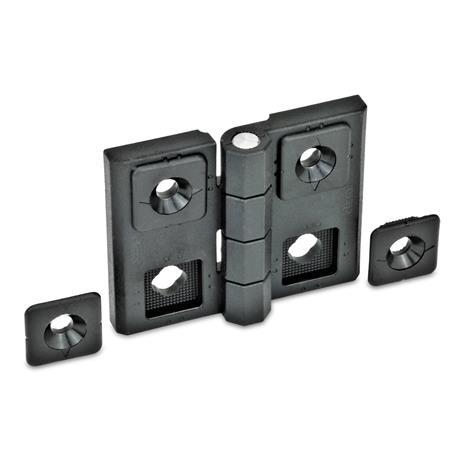

GN 236 Hinge
ELESA original design CFR.

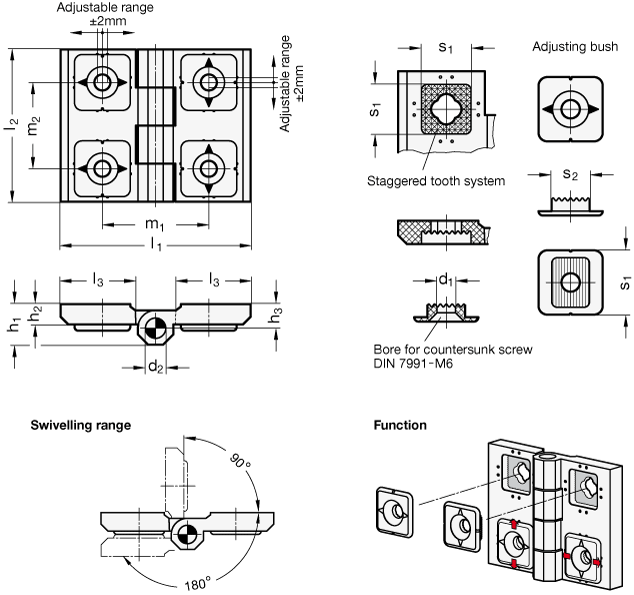

| l1 | l2 | d1 | d2 | h1 ≈ | h2 | h3 | h4 | l3 | m1 | m2 | s1 | s2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 75 | 60 | 6,5 | 8 | 16 | 8 | 9,5 | 19 | 29,5 | 41,5 | 34 | 17 | 13 |
Specification
Plastic (Polyamide PA-HP)
Pin
Stainless steel AISI 303
Plastic Characteristics
Stainless Steel Characteristics
Load Rating Information for Plastic Hinges
Overview to appropriate standards of the assembly sets GN 968
Overview to appropriate standards of the assembly sets GN 965
RoHS
- Glass fiber reinforced
- Black, matte
- Temperature resistant up to 80 °C
Pin
Stainless steel AISI 303
Plastic Characteristics
Stainless Steel Characteristics
Load Rating Information for Plastic Hinges
Overview to appropriate standards of the assembly sets GN 968
Overview to appropriate standards of the assembly sets GN 965
RoHS
Information
Hinges GN 236 allow the technically and visually perfect positioning and alignment of a door in its frame.
The serrations at the wings of the hinge (cross serration) and at the adjusting bushes create a form lock which prevents the hinge from moving after installation. The tips of the arrows mark the 0 reference point for easier installation.
Depending on installation position (rotating by 90°) of the adjusting bushes, the hinge is adjustable both in vertical and in horizontal direction.
see also...
| How to order |
| ||||
GN 236-75-60 |
RoHS compliant:
-
-
Weight:
-
-
