Operating Lever Horizontal, with Lock Mechanism, with Horizontal Mounting Base

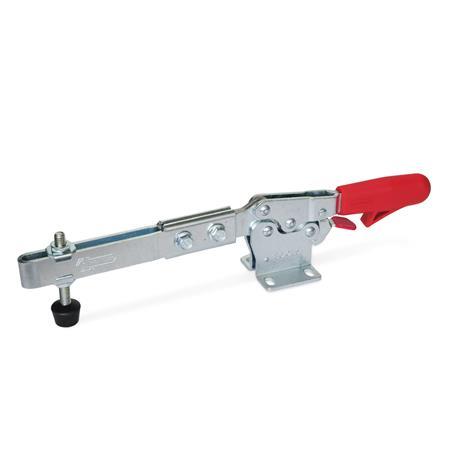

GN 820.3 Toggle Clamps, with extended clamping arm

Toggle Clamps with extended clamping arm GN 820.3 thumbnail

Toggle Clamps with extended clamping arm GN 820.3 sketch

Type

UL	Clamping arm extended, with slotted hole and with two flanged washers
ULC	Clamping arm extended, with slotted hole, two flanged washers and clamping screw GN 708.1

Show filter

Size	F_H in N Holding capacity	a ≈	b₁	b₂	b₃	d₁	d₂	h₁ ≈	h₂	h₃	h₄	h₅ max.

130	600	67,5	36	40	6,3	M 6	5,6	51	30,5	16	25,5	14
230	1100	71,5	44	44	8,2	M 8	6,6	61,5	36,5	18	30	12,5

Filter combination produces no result.

Size	l₁ ≈	l₂ ≈	l₃ ≈	l₄	m₁	m₂	m₃	r	s	w Adjustable range

130	250	171	133	55	26	22,4	28,4	141	2,5	17,5
230	283	196	152,5	68	26	26	31,5	158,5	3	20

Filter combination produces no result.

Specification

Steel

Case-hardened steel C10
Zinc plated, blue passivated
Bearing pins tempered
Bearing rivets case-hardened

All moving parts
Lubricated with special grease

Hand grip
High quality, oil resistant, red plastic

Clamping screw GN 708.1, type A

Steel, zinc plated
Rubber tip 85 Shore A

RoHS

Accessory

Clamping Screws

Holders for Clamping Screws GN 801 (for Type UL)

Clamping Arm Extenders GN 801.1 (for Type UL)

Clamping Arm Extenders GN 801.2 (for Type UL)

Information

GN 820.3 toggle clamps have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp.To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).

They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.

Toggle clamps in the U-bar version with two flanged washers (Type UL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type ULC.
