Steel, Blackened

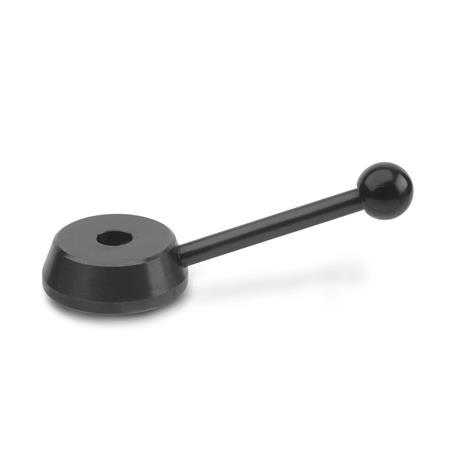

GN 211 Control Levers
Bore code
| B | Without keyway |
| K | With keyway |
| V | With square |
| d1 | d2 Bore H7 Square H11 | d3 | d4 | h1 | h2 | h3 ≈ | Length l ≈ |
|---|---|---|---|---|---|---|---|
| 50 | 12 | 8 | 20 | 17 | 5 | 45 | 82 |
| 55 | 14 | 10 | 25 | 18 | 5 | 52 | 96 |
| 65 | 16 | 12 | 30 | 20 | 5 | 60 | 110 |
| 80 | 20 | 14 | 35 | 24 | 6 | 74 | 138 |
Filter combination produces no result.
Specification
Information
Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter.
Spring plungers as well as indexing plungers can be used as indexing elements.
| How to order |
| ||||||
GN 211-65-B16 |
RoHS compliant:
-
-
Weight:
-
-
