Zinc Die Casting, with Bushing and Washer

GN 307 Adjustable Hand Levers

Show filter

l₁	d₁	d₂	d₃	d₄	h₁	h₂	h₃	h₄ Stroke	s	t min.

30	M 5	13	10	13	24,5	4	31	3,5	2,5	10
45	M 6	15	10	13	24,5	4	34	3,5	3	10
63	M 8	20	13,5	17,5	31	6,5	45	4	3,5	13
78	M 10	25	16	21	36	8	54	4	4	16

Filter combination produces no result.

Specification

Handle
Zinc die casting

Powder coated
Black, RAL 9005, textured finishSW

Orange, RAL 2004, textured finishOS

Red, RAL 3000, textured finishRS

Silver, RAL 9006, textured finishSR

Threaded bushing and retaining screw
Steel, blackened

Washer
Steel

Case-hardened
Blackened

RoHS

Information

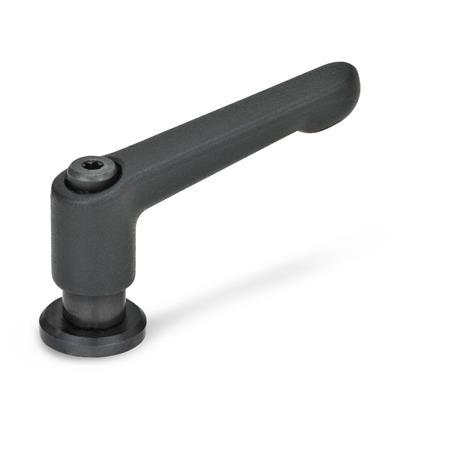

Adjustable hand levers GN 307 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. On releasing the handle the serrations re-engage automatically.

When pulling the handle, the serration frees itself and can be re-located into any required position. Engagement is achieved by „releasing“ the lever.

The washer cannot be removed and does not turn when the lever is actuated. It protects the clamped surface from damage. One typical application is to use the hand lever for slotted holes.
