with Thread

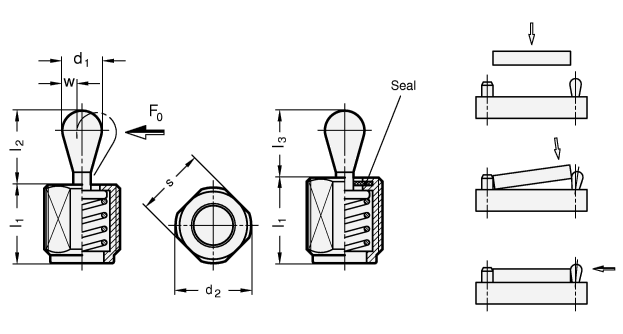

GN 713 Side Thrust Pins
Type
| SB | Thrust pin steel, with seal |
| SA* | Thrust pin steel, without seal |
| d1 | Side thrust force F0 in N ≈ at l2 | l1 -1,5 | d2 | a1 | a2 | ||||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 20 | 50 | 100 | 11,5 | 19 | 26,5* | M 12 | 2,5 | 5,7 |
| 6 | 40 | 75 | 150 | 11,5 | 19 | 26,5* | M 12 | 3 | 7,7 |
| 10 | 100 | 200 | 300 | 18 | 31,5 | 45* | M 18 x 1,5 | 5 | 10,7 |
Filter combination produces no result.
| d1 | k | l2 | l3 | s | w | x1 | x2 | Code No. for spanner |
|---|---|---|---|---|---|---|---|---|
| 5 | 1,5 x 45° | 6,7 | 6 | 10 | 1,6 | 1,7 | 1,3 | GN 713.1-5.6 |
| 6 | 1,5 x 45° | 10,7 | 10 | 10 | 1,8 | 1,9 | 1,4 | GN 713.1-5.6 |
| 10 | 2 x 45° | 16,7 | 16 | 16 | 3,2 | 3,4 | 2,7 | GN 713.1-10 |
Filter combination produces no result.
** not available from stock, requires a minimum order quantity
Specification
Housing Steel
Zinc plated, blue passivated
Thrust pin steel, hardened,
Zinc plated, blue passivated
Pressure spring coding
Force
light: gray
medium: black
heavy: silver
Seal
Rubber NBR (Perbunan®)
RoHS
Zinc plated, blue passivated
Thrust pin steel, hardened,
Zinc plated, blue passivated
Pressure spring coding
Force
light: gray
medium: black
heavy: silver
Seal
Rubber NBR (Perbunan®)
RoHS
Information

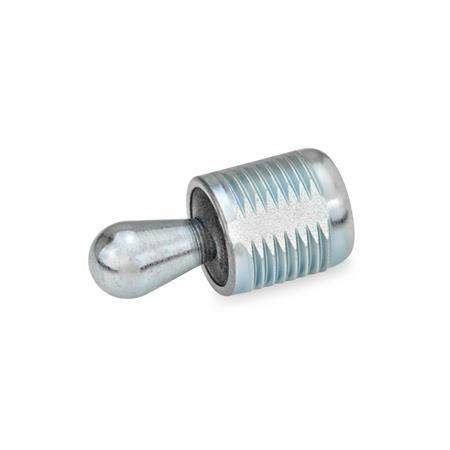

Spring loaded side thrust pins GN713 are versatile and practical elements for holding, positioning and clamping workpieces.
They eliminate costly alternatives, are space saving and simple to install. The protruding height of the thrust pin can be adjusted with the threaded body.
For mounting the side thrust pins a suitable mounting tool GN 713.1 is available (see table).
see also...
| How to order |
| ||||||||
GN 713-6-75-11,5-SB |
RoHS compliant:
-
-
Weight:
-
-
