with Partial Extension, Load Capacity up to 280 N

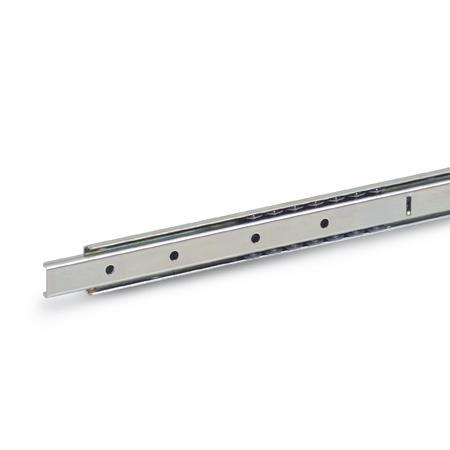

GN 1400 Telescopic Slides
Type
A | Without rubber stop |
Identification no.
1 | Fastening using through-holes |
l1 | l2 +2/-2 Stroke | l3 | Fs per pair in N at 10,000 cycles | at 100,000 cycles |
---|---|---|---|---|
300 | 210 | 485 | 220 | 170 |
350 | 240 | 565 | 260 | 200 |
400 | 290 | 665 | 260 | 200 |
500 | 370 | 845 | 280 | 220 |
Specification
Slide profile
Steel, Zinc plated, blue passivatedZB
Bearings
Roller bearing steel, hardened
Ball cage
Steel, zinc plated
Operating temperature -20 °C to 100 °C
Telescopic Slides - Application Video
Mounting holes to GN 1400
Telescopic Slides - Highlights
Telescopic Slides - General Notes and Overview of Types
Telescopic Slides - Mounting and Technical information
Telescopic Slides - Component Options and Fastening Options
RoHS
Steel, Zinc plated, blue passivatedZB
Bearings
Roller bearing steel, hardened
Ball cage
Steel, zinc plated
Operating temperature -20 °C to 100 °C
Telescopic Slides - Application Video
Mounting holes to GN 1400
Telescopic Slides - Highlights
Telescopic Slides - General Notes and Overview of Types
Telescopic Slides - Mounting and Technical information
Telescopic Slides - Component Options and Fastening Options
RoHS
On request
Other lengths and hole spacing
Other attachment options
With rubber stop
With locking device
(back, front, or back-front)
Other surfaces
With support bracket
With retraction dampening, external
Other attachment options
With rubber stop
With locking device
(back, front, or back-front)
Other surfaces
With support bracket
With retraction dampening, external
Information
Telescopic slides GN 1400 are installed vertically and in pairs. The stroke reaches ≈ 75 % of the nominal length l1 (partial extension). With type A without rubber stop, the end stops are made out of steel, which prevents the slide from being unintentionally pulled out or detached. If larger static or dynamic loads occur in the direction of extension, they should be absorbed by external stop elements.
The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach without additional auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.
