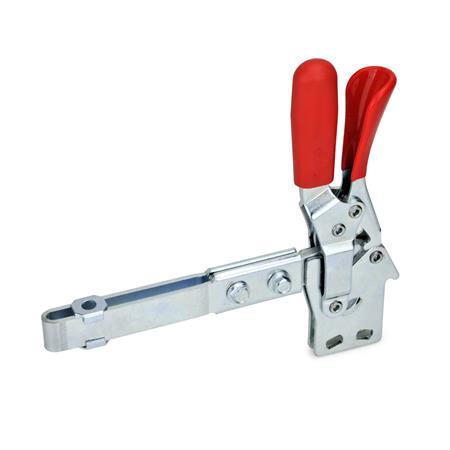

Operating Lever Vertical, with Lock Mechanism, with Vertical Mounting Base

GN 810.4 Toggle Clamps

Type

VL	Clamping arm extended, with slotted hole and with two flanged washers
VLC	Clamping arm extended, with slotted hole, two flanged washers and clamping screw GN 708.1

Show filter

Size	F_H in N Holding capacity	a ≈	b₁	b₂	b₃	b₄	d₁	d₂ ≈	h₁ ≈	h₂	h₃	h₄	h₅ max.

130	500	67,5	35	10	5	6,3	M 6	5,5	156	41,5	16	25,5	25
230	1000	71,5	43	12	6	8,2	M 8	6,5	183	48	18	30	24

Filter combination produces no result.

Size	l₁ ≈	l₂ ≈	l₃	m₁	m₂	m₃	m₄	r ≈	w Adjustable range

130	164	121	55	12,5	19	6,5	7,5	158	17,5
230	198	145,5	68	19,5	19,5	6,5	6,5	191	20

Filter combination produces no result.

Specification

Steel

Case-hardened steel C10
Zinc plated, blue passivated
Bearing pins tempered
Bearing rivets case-hardened

All moving parts
Lubricated with special grease

Solid designed plastic handle
Red, oil resistant

Clamping screw GN 708.1, type A

Steel, zinc plated
Rubber tip 85 Shore A

RoHS

Accessory

Clamping Screws

Holders for Clamping Screws GN 801

Clamping Arm Extenders GN 801.1

Clamping Arm Extenders GN 801.2

Information

Toggle clamps GN 810.4 are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations; and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a single hand to allow for opening / closing.

They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Toggle clamps in the U-bar version with two flanged washers (type VL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type VLC.
