GN 227.7 Pressed Steel Handwheels

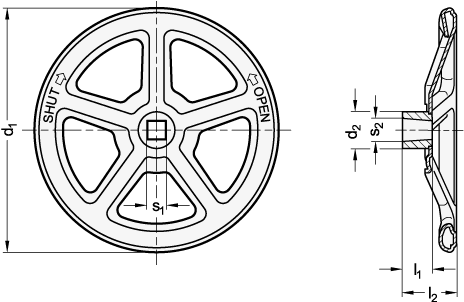

| d1 | Square (conical) s1 | s2 | d2 | l1 | l2 ±1 | No. of spokes | Thickness of pressed steel |
|---|---|---|---|---|---|---|---|
| 125 | VK 11 | 12,7 | 28 | 17 | 31 | 3 | 1,2 |
| 150 | VK 12 | 13,8 | 30 | 18 | 33,5 | 3 | 1,5 |
| 200 | VK 14 | 16 | 35 | 20 | 40,5 | 3 | 2 |
| 250 | VK 17 | 19,25 | 36 | 23 | 47 | 4 | 2 |
| 300 | VK 19 | 21,8 | 42 | 28 | 59 | 5 | 2 |
| 400 | VK 24 | 27 | 48 | 30 | 66 | 5 | 2,5 |
Filter combination produces no result.
Specification
Pressed steel
Cathodic dip coated (KTL)
Black, RAL 9005SWK
Red, RAL 3000RTK
Hub
Steel, welded
RoHS
Cathodic dip coated (KTL)
Black, RAL 9005SWK
Red, RAL 3000RTK
Hub
Steel, welded
RoHS
On request
With bore B
With square V
Neutral, no labeling
With square V
Neutral, no labeling
Information

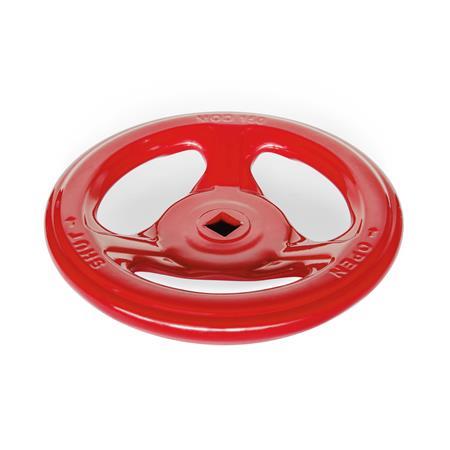

Pressed steel handwheels GN 227.7 feature high mechanical strength and a coating for increased corrosion resistance. They are also not affected by shock and knocks.
The conical square hole allows easy installation and firm seating on a spindle. The cast shape prevents injuries from sharp edges during handling. The engraved labels “SHUT” and “OPEN” help with safe and correct operation of the valves.
| How to order |
| ||||||
GN 227.7-200-VK14-SWK |
