Foot Plastic

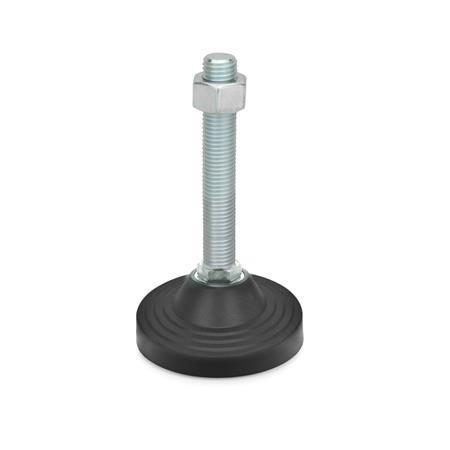

GN 246 Leveling Feet, without mounting holes
ELESA original design LV.A/LV.F-APS
Type
| A | without nut, without rubber pad |
| B | with nut, without rubber pad |
| AG | without nut, with rubber pad |
| BG | with nut, with rubber pad |
| d1 | d2 | l1 | l2 | l3 | A/F | Static load in kN (see information) | |
|---|---|---|---|---|---|---|---|
| 125 | M 20 | 95 | 155 | 55 | 45 | 24 | 40 |
| 125 | M 24 | 95 | 155 | 55 | 45 | 24 | 40 |
| 125 | M 30 | 155 | - | 55 | 45 | 30 | 40 |
Filter combination produces no result.
Specification
Foot
Plastic Technopolymer (Polyamide PA)
Threaded stud
Steel zinc plated, blue passivated
Hexagon nut DIN 934
Steel zinc plated, blue passivated
Rubber pad (NBR)
RoHS
Plastic Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Black, matte finish
- Temperature resistant up to 100 °C
Threaded stud
Steel zinc plated, blue passivated
- Property class 5.8
Hexagon nut DIN 934
Steel zinc plated, blue passivated
Rubber pad (NBR)
- Hardness 90 Shore A
- Black
- Reinforced by zinc plated steel disk
RoHS
Information
Leveling feet GN 246 are known for their high static load capacity. The cost-effective bolt-to-foot connection allows an excursion of only ± 2°.
The values given in the table regarding the static load capacity serve as a guide only and if these are exceeded serious permanent deformation or breakage of the plastic foot could occur.
The values given above have been arrived at by a series of tests whereby a limited number of leveling feet were subjected for a limited time to a vertical static load in relation to the foot.
| How to order |
| ||||||||
GN 246-125-M24-95-B |
