GN 126.1 Flat Adjustable Tension Levers

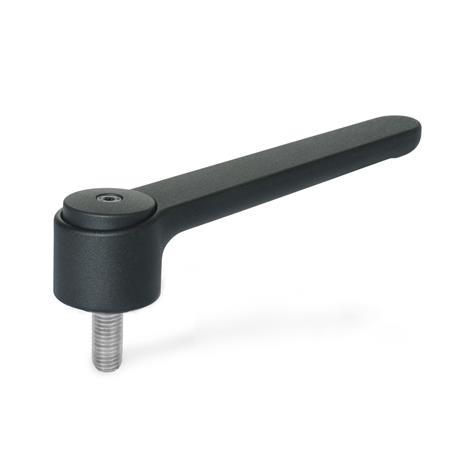

Flat Adjustable Tension Levers GN 126.1 thumbnail

Flat Adjustable Tension Levers GN 126.1 sketch

Show filter

l₁	d₁		l₂							d₃	d₄	h₁	h₂	h₃	h₄ Stroke

120	M 10	M 12	20	25	32	40	50	63	80	16	32	29,5	2	41,5	2,5
145	M 12	M 16	32	40	50	63	80	-	-	23	40	42	4	56	4

Filter combination produces no result.

Specification

Handle
Zinc die casting

Powder coated
Black, RAL 9005, textured finishSW

Silver, RAL 9006, textured finishSR

Hub cover
Plastic

Black for SW
Light gray for SR

Countersunk screw
Stainless steel

Chemically blackened for SW
Plain for SR

Threaded stud
Stainless steel AISI 303

Stainless Steel Characteristics

ISO Fundamental Tolerances

RoHS

On request

With inch threads

Information

Flat adjustable tension levers GN 126.1 are characterized by their low height and the timelessly elegant design.

They are ideal whenever swiveling in a confined space is required or the lever is to be clamped in a particular position. The threaded insert / bored bushing is moveably attached to the handle with serrations.

Pulling the lever disengages the serrations, allowing it to be swiveled to the ideal clamping position. On “releasing” the handle, the serrations re-engage automatically.
