Operation with Key

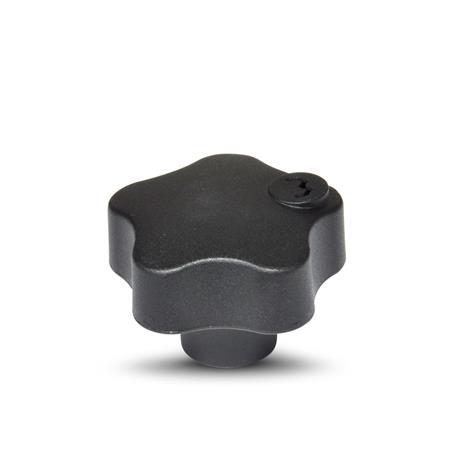

GN 5337.8 Safety Star Knobs
ELESA original design VLS.
| d1 | d2 | d3 | h1 | h2 | h3 | t min. |
|---|---|---|---|---|---|---|
| 42 | M 6 | 16,5 | 30 | 14,5 | 0,5 | 12 |
| 42 | M 8 | 16,5 | 30 | 14,5 | 0,5 | 13 |
| 55 | M 8 | 19 | 33 | 15 | 1 | 13 |
| 55 | M 10 | 19 | 33 | 15 | 1 | 17 |
Filter combination produces no result.
Specification
Knob
Plastic
Technopolymer (Polyamide PA)
Cover flange plastic
with knob ultrasonically welded
Indexing element plastic
(Technopolymer POM)
Threaded bushing
Brass
RoHS
Plastic
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Cover flange plastic
with knob ultrasonically welded
Indexing element plastic
(Technopolymer POM)
Threaded bushing
Brass
RoHS
Accessory
KeysOn request
With threaded stud
Information
The safety star knobs GN 5337.8 have been developed for applications where access by unauthorised personnel is not permitted.
The shape of the keyhole profile (corresponding to the key profile) prevents the penetration of foreign objects.
Furthermore the safety star knob has been designed in such a way that it can also be used in outdoor areas.
see also...
| How to order |
| ||||
GN 5337.8-55-M8 |
