for Position Indicators GN 000.8 / GN 000.3

GN 522.8 Spoked Handwheels, plastic

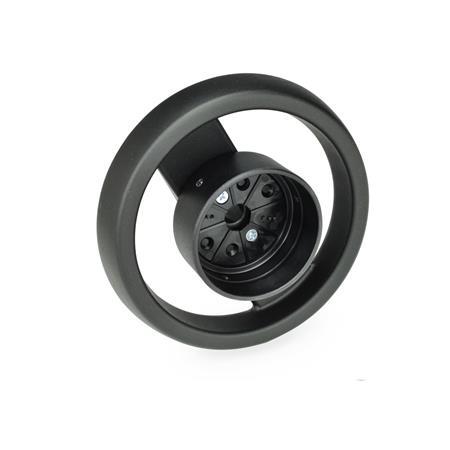

Spoked Handwheels plastic GN 522.8 thumbnail

ELESA original design VRTP. GXX Info

Spoked Handwheels plastic GN 522.8 sketch

Bore code

B	Without keyway
K	With keyway

Type

A	Without handle
D	With revolving handle

Show filter

d₁	d₂ H7 Bore	d₃	d₄	d₅	b	l₁	l₂	l₃	l₄	r	Ø Cylindrical handle	for position indicators GN 000.8 Size	GN 000.3 Size

160	14	26	40	76	25	27	51	12	80	65	24	60	60
200	16	30	50	76	28	34	61	12	80	84	24	60	60
250	20	35	58	76	32	38	70	12	90	105	25	60	60

Filter combination produces no result.

Specification

Body Plastic
Technoplymer (Polypropylen PP)

Reinforced, shock-resistant
Temperature resistant up to 80 °C
Black, matte finish

Hub bushing
Steel, blackened

Threaded bushing brass to accept the revolving handle

Housing for position indicator
Technopolymer (Polyamide PA)
Glass fiber reinforced

Revolving handles
Plastic, Technopolymer
Black, matte finish

Grub screw DIN 916
with internal hexagon and serrated point

Plastic Characteristics

ISO Fundamental Tolerances

Keyway P9 DIN 6885 Page 1

RoHS

Accessory

Position indicators GN 000.8 / GN 000.3 are to be ordered separately.

Information

Handwheels GN 522.8 are similar to spoked handwheels GN 522. They are, however, fitted with a housing to accept position indicators GN 000.8 and GN 000.3 and they are provided with a grub screw for fitting to the shaft.

For large adjustments, the hub bore can be provided with a keyway.

The shape of these handwheels does not only meet all demands for modern design but also covers all aspects for an ergonomical angle.
