for Installation in Thin Walled Equipment, without Rest Position

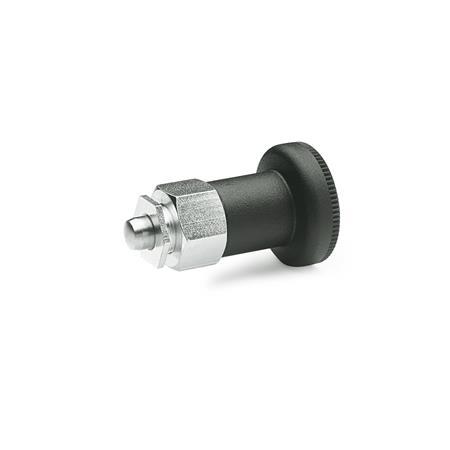

GN 607.2 Indexing Plungers
| d1 Plunger -0,02/-0,05 Bore H7 | l1 | d2 | d3 | e | l2 | l3 | l4 Stroke | s Clamping distance | A/F1 | A/F2 | Spring load in N≈ Initial | end | Axial load in N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 8,5 | 25 | 10 | 19,5 | 34 | 10 | 6 | 1 ... 3 | 17 | 14 | 10 | 24 | 400 |
| 6 | 10,5 | 25 | 10 | 19,5 | 34 | 10 | 6 | 3 ... 5 | 17 | 14 | 10 | 24 | 400 |
| 8 | 10 | 31 | 12 | 22 | 40 | 12 | 7,5 | 1 ... 5 | 19 | 16 | 13 | 23 | 500 |
| 8 | 12 | 31 | 12 | 22 | 40 | 12 | 7,5 | 3 ... 5 | 19 | 16 | 13 | 23 | 500 |
Filter combination produces no result.
Specification
Guide
SteelST
Zinc plated, blue passivated
Plunger pin
Stainless steel
Knob
Plastic (Polyamide PA)
Load Rating Information
ISO Fundamental Tolerances
Stainless Steel Characteristics
Plastic Characteristics
RoHS
SteelST
Zinc plated, blue passivated
Plunger pin
Stainless steel
- AISI 303
- Chemically nickel plated
Knob
Plastic (Polyamide PA)
- Black, matte
- Not removable
Load Rating Information
ISO Fundamental Tolerances
Stainless Steel Characteristics
Plastic Characteristics
RoHS
Accessory
Double Ring SpannerGN 607.9-SW14-SW16
as mounting tool
Information
Indexing plungers GN 607.2 have been developed for installation in thin walled equipment.
It has to be taken into consideration that, depending on the mounting plate thickness 's', the protruding plunger length l°1°°' and the position of the hexagon nut on its centre bush, the plunger nose might not always be fully retractable.
For design reasons the positional accuracy of this indexing plunger is not as precise as plunger GN 607.
see also...
| How to order |
| ||||||
GN 607.2-6-10,5-ST |
