Steel, Blackened

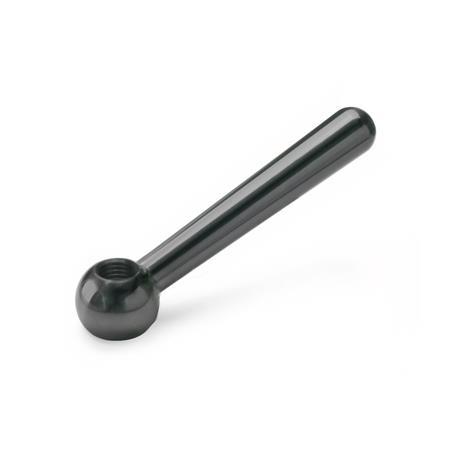

DIN 99 Clamping Levers
Type
| K | Straight lever with plain bore |
| M | Straight lever with threaded bore |
| L | Angled lever with plain bore |
| N | Angled lever with threaded bore |
| l1 | d1 Thread Type M | Type N | d2 H7 Bore Type K | Type L | b | d3 | d4 ≈ | d5 -0,2 | h ≈ | l2 ≈ |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | M 6 | M 6 | B 6 | B 6 | 9,5 | 8 | 7,5 | 12 | 24 | 48 |
| 63 | M 8 | M 8 | B 8 | B 8 | 12 | 10 | 11 | 16 | 30,5 | 60 |
| 80 | M 10 | M 10 | B 10 | B 10 | 14,5 | 13 | 15 | 20 | 38 | 76 |
| 100 | M 12 | M 12 | B 12 | B 12 | 18,5 | 16 | 19 | 25 | 47 | 95 |
| 125 | M 16 | M 16 | B 16 | B 16 | 24 | 20 | 23,5 | 32 | 59,5 | 119 |
| 160 | M 20 | M 20 | B 20 | B 20 | 30 | 25 | 29,5 | 40 | 76 | 152 |
| 200 | - | M 24 | - | B 24 | 40 | 32 | 33 | 50 | 97 | 190 |
Filter combination produces no result.
Specification
Information
The official DIN standard sheet specifies additional sizes 40 - M5 / B5.
| How to order |
| ||||||
DIN 99-100-M12-N |
