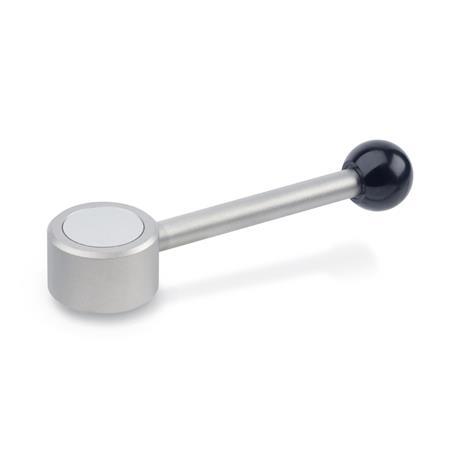

GN 125.5 Flat Adjustable Stainless Steel Tension Levers, with threaded insert
Type
| D | straight lever |
| E | angled lever |
| d1 | d2 | d3 | d4 | d5 | h1 | h2 | h3 | h4 ≈ | h5 Stroke | l | t min. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | M 6 | M 8 | 13,5 | 8 | 20 | 20,5 | 1,5 | 12,5 | 36 | 4 | 100 | 11 |
| 36 | M 8 | M 10 | 16 | 10 | 25 | 24,5 | 2 | 15 | 45 | 4,5 | 120 | 14 |
| 40 | M 10 | M 12 | 19 | 12 | 30 | 30 | 4 | 19 | 53 | 4,5 | 130 | 17 |
| 45 | M 12 | M 16 | 23 | 12 | 32 | 35,5 | 4 | 24 | 64 | 5 | 145 | 23 |
Filter combination produces no result.
Specification
Stainless steel
AISI 303
Matte shot-blasted
Cover
Plastic, light gray
Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish
Safety circlip
Plastic (Polyacetal)
RoHS
AISI 303
Matte shot-blasted
Cover
Plastic, light gray
Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish
Safety circlip
Plastic (Polyacetal)
RoHS
On request
With threaded through hole
With inch threads
With inch threads
Information
The overall height of flat adjustable stainless steel tension levers GN 125.5 is reduced to a minimum.
As all other adjustable levers, they are ideal whenever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.
Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
| How to order |
| ||||||
GN 125.5-40-M12-E |
