GN 526 Control Knobs, bushing steel, blackened

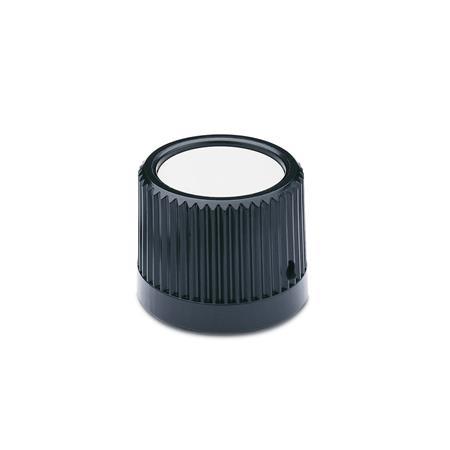

Control Knobs bushing steel blackened GN 526 thumbnail

ELESA original design IZN.380 Info

Control Knobs bushing steel blackened GN 526 sketch

Show filter

d₁ f7	d₂ H7 Bore		d₃	d₄	d₅	d₆	d₇	l₁	l₂	l₃	l₄	l₅	r

32	B 6	-	15	19	21	3	-	26	5	16	8	9	-
37	B 6	-	15	25	27	3	-	29	6	16	10	10	-
42	B 8	-	18	29	31	4	-	32	7	17	11	11	-
48	B 8	-	22	32	34	4	3,2	35	8	22	10	14	14
52	B 10	B 12	22	37	39	4	4,2	39	9	22	13	14	15
58	B 12	-	26	42	44	5	5,2	41	10	27	11	16	17
63	B 12	B 14	26	48	50	5	6,2	44	11	30	10	16	19
80	B 16	-	26	59	62	5	6,2	48	12	30	13	17	24

Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Temperature resistant up to 130 °C
Black, shiny finish

Bushing
Steel, blackened

Cap
Plastic, light gray

ISO Fundamental Tolerances

Plastic Characteristics

RoHS

Information

The light gray cover of the control knobs GN 526 shrouds the fixing components as well as the shaft end. The cover also lends itself for a logo or other symbols.

The cap is mounted by simply pressing it by hand into place. To remove it run the finger with some pressure along its rim.

How to order
