GN 125.5 Flat Adjustable Stainless Steel Tension Levers

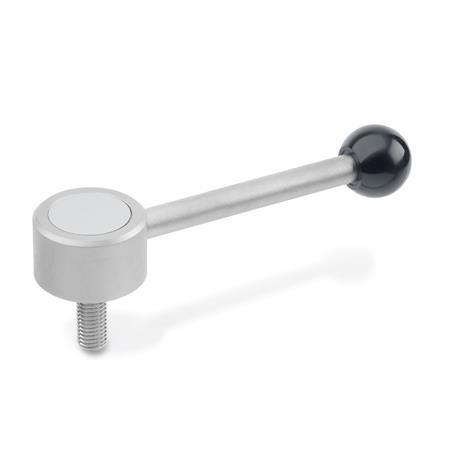

Flat Adjustable Stainless Steel Tension Levers GN 125.5 thumbnail

Flat Adjustable Stainless Steel Tension Levers GN 125.5 sketch

Type

D	straight lever
E	angled lever

Show filter

d₁	d₂	l₁								d₃	d₄	d₅	h₁	h₂	h₃	h₄ ≈	h₅ Stroke	l₂

32	M 8	12	16	20	25	32	40	50	-	13,5	8	20	20,5	1,5	12,5	36	4	100
36	M 10	16	20	25	32	40	50	63	80	16	10	25	24,5	2	15	45	4,5	120
40	M 12	25	32	40	50	63	80	-	-	19	12	30	30	4	19	53	4,5	130
45	M 16	32	40	50	63	80	-	-	-	23	12	32	35,5	4	24	64	5	145

Filter combination produces no result.

Specification

Stainless steel
AISI 303
Matte shot-blasted

Cover
Plastic, light gray

Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish

Safety circlip
Plastic (Polyacetal)

Plastic Characteristics

Stainless Steel Characteristics

RoHS

On request

With inch threads

Information

The overall height of flat adjustable stainless steel tension levers GN 125.5 is reduced to a minimum.

As all other adjustable levers, they are ideal whenever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.
