GN 115.1 Mini-Latches
Type

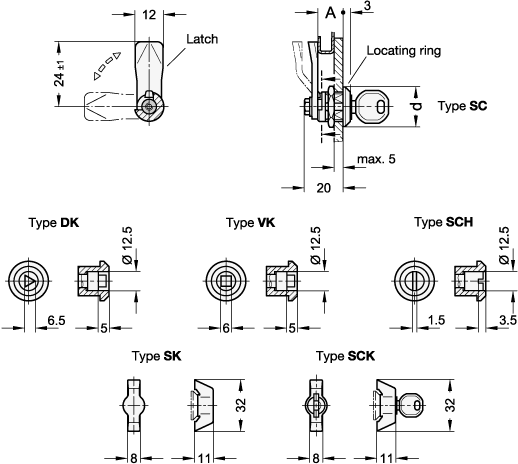

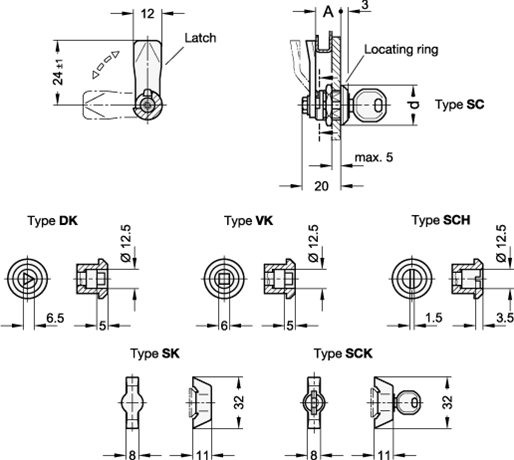

| DK | Operation with triangular spindle (DK6.5) |
| VK | Operation with square spindle |
| SCH | Operation with slot |
| SK | Operation with wing knob |
| SCK | Operation with wing knob, lockable |
| SC | With key, lockable (keyed alike) |
| Latch distance A | d Type DK / VK / SCH | Type SK / SCK / SC | ||
|---|---|---|---|---|
| 7,5 | 13,5 | 19,5 | 20 | 22 |
Filter combination produces no result.
Specification
Lock housing
Zinc die casting
Housing collar
Powder coated
Black, RAL 9005, textured finishSW
Wing knob
Zinc die casting
Powder coated
Black, RAL 9005, textured finish
Key
Nickel silver with plastic hand piece
Other parts
Steel
Zinc plated, blue passivated
Protection class IP 65
Type DK, VK, SCH, SK
RoHS
Zinc die casting
Housing collar
Powder coated
Black, RAL 9005, textured finishSW
Wing knob
Zinc die casting
Powder coated
Black, RAL 9005, textured finish
Key
Nickel silver with plastic hand piece
Other parts
Steel
Zinc plated, blue passivated
Protection class IP 65
Type DK, VK, SCH, SK
RoHS
Accessory
Socket Keys 119.2Protective Caps GN 120
On request
Lock with Different Combinations
Information

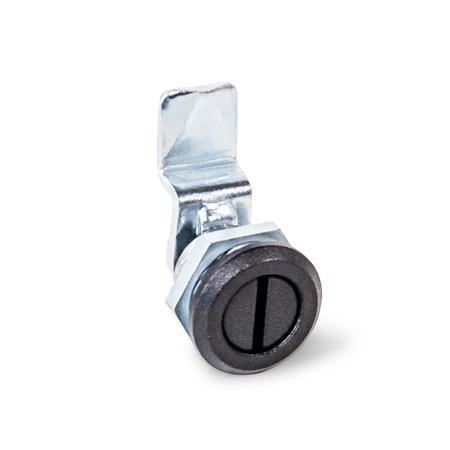

Mini-latches GN 115.1 have smaller dimensions than standard latches GN 115, making them ideal for applications with limited space or requiring an unobtrusive appearance.
They are operated with a rotation limited to 90°, which moves the latch bar into the locked position behind the frame. The bevels of the locking ease the closing of the door. Latches with different crank shapes cover a latch distance A of 7.5, 13.5 and 19.5 mm.
The lockable latches (types SCK and SC) are delivered with 2 keys. The key may be pulled off in both end positions. The lock is standard, so that every lock can be opened with the same key.
The mini-latches GN 115.1are supplied with loosely enclosed latch (except for type SC).
