GN 618 Indexing Plungers, steel, blackened

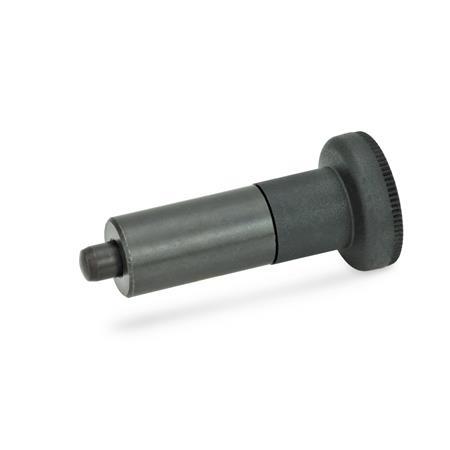

Indexing Plungers steel blackened GN 618 thumbnail

Indexing Plungers steel blackened GN 618 sketch

Type

A	With knob
G	Wwith threaded rod

Show filter

d₁ Plunger -0,02/-0,05 Bore G7	d₂ h9	d₃	d₄	l₁ ≈	l₂	l₃	l₄	l₅	Spring load in N≈ initial	end

5	12	21	M 5	45	5	22	6	4,5	7	17
6	14	25	M 6	54,5	6	26	10	8	9	24
8	18	31	M 8	69	8	34	12	10	11	30

Filter combination produces no result.

Specification

Steel

Weldable
Blackened
Plunger pin hardened

Knob
Plastic (Polyamide PA)

Black, matte
Not removable

Load Rating Information

ISO Fundamental Tolerances

Plastic Characteristics

Metric ISO Thread DIN 13

RoHS

Information

Indexing plungers GN 618 without thread are for applications where welding, resin bonding (loctite) or clamping is favoured.

Type G has been designed for applications where the indexing plunger is not operated with the standard knob.

The indexing plungers are designed such that the plunger set in the end position (pressure spring is "on block") can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), additional information can be submitted on request.
