Steel

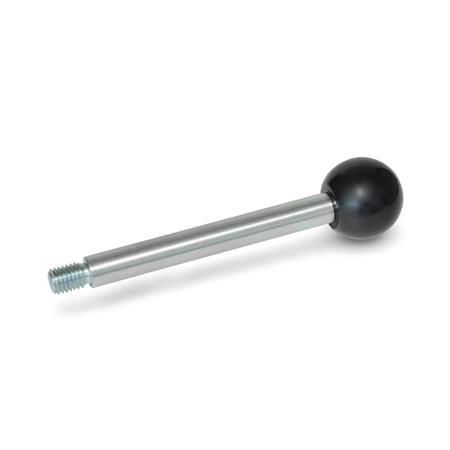

GN 310 Gear Lever Handles

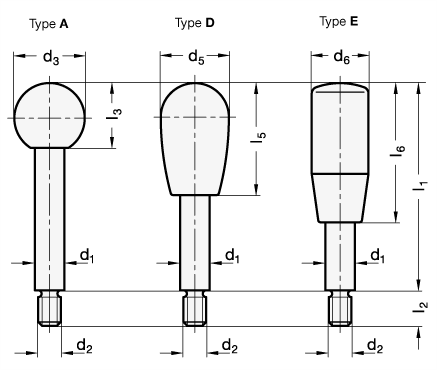

Type
| A | Ball knob DIN 319 |
| D | Domed gear knobs GN 719 |
| E | Cylindrical knob GN 519 |
| d1 | l1 | d2 | d3 | d4 | d5 | l2 | l3 | l4 | l5 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 63 | 80 | 100 | M 6 | 20 | 20 | 18 | 9 | 18 | 32 | 40 |
| 10 | 80 | 100 | 125 | M 8 | 25 | 26 | 21 | 11 | 22,5 | 42 | 50 |
| 12 | 100 | 125 | 160 | M 10 | 32 | 33 | 23 | 14 | 29 | 55 | 65 |
| 14 | 125 | 160 | 200 | M 12 | 35 | 33 | 26 | 16 | 32,5 | 55 | 80 |
| 16 | 160 | 200 | 250 | M 14 | 40 | 38 | 28 | 18 | 37 | 69 | 90 |
Filter combination produces no result.
Specification
Shafts
Steel
Zinc plated, blue passivatedZB
Knobs
Plastic
Duroplast (Phenolic PF)
RoHS
Steel
Zinc plated, blue passivatedZB
Knobs
Plastic
Duroplast (Phenolic PF)
- Black, shiny finish
- Screwed-on
RoHS
Information
Gear lever handles GN 310 are highly universal options for movement and operation. Actuation of hydraulic valves and control levers eccentric cams are example uses of these standard parts.
| How to order |
| ||||||||
GN 310-10-125-E-ZB |
