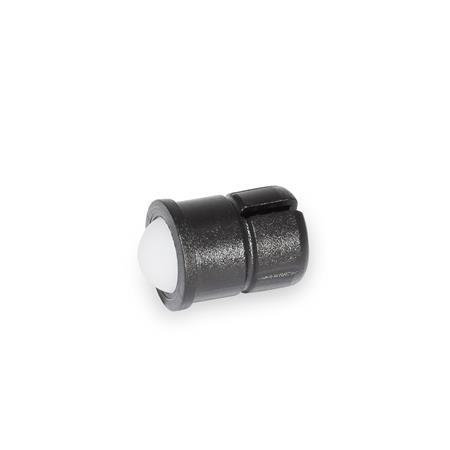

Press-On Type, with Ball
GN 614.5 Spring Plungers, plastic
| d1 +0,1 | d2 | d3 | d4 +0,2 | l1 ±0,2 | l2 | w | Spring load in N ≈ initial | end |
|---|---|---|---|---|---|---|---|---|
| 4 | 3 | 4,6 | 4 | 5 | 1 | 0,8 | 3 | 6,5 |
| 5 | 4 | 5,6 | 5 | 6 | 1 | 1 | 6 | 9,4 |
| 6 | 5 | 6,5 | 6 | 7 | 1 | 1,6 | 6,2 | 12,6 |
| 8 | 6,5 | 8,5 | 8 | 9 | 1 | 1,9 | 10 | 20,4 |
| 10 | 8 | 11 | 10 | 13,5 | 1,5 | 2,4 | 11,9 | 22,3 |
Filter combination produces no result.
Specification
Housing
Plastic Housing and Stainless Steel BallKU
Temperature resistant up to 50 °C Ball
Stainless steel
Housing and ball
Plastic Housing and BallKD
Temperature resistant up to 50 °C
Pressure spring
Stainless steel AISI 631
RoHS
Plastic Housing and Stainless Steel BallKU
Temperature resistant up to 50 °C Ball
Stainless steel
- AISI 420C
- Hardened
Housing and ball
Plastic Housing and BallKD
Temperature resistant up to 50 °C
Pressure spring
Stainless steel AISI 631
RoHS
Information
Spring plungers GN 614.5 are used as detents as well as for push-on and push-off applications and ejectors.
The geometric shape of the plastic housing generates a self-clamping function which compensates drill hole tolerances of as much as 0,2 mm. It also allows the hand-tightened assembly and makes overhead installation easier.
| How to order |
| ||||
GN 614.5-8-KD |
