GN 607.4 Indexing Plungers

Show filter

d₁ Plunger -0,02/-0,05 Bore +0,30/+0,25	l₁	b	d₂ -0,02/-0,1	d₃	d₄	l₂	l₃	l₄	l₅ Stroke	Spring load in N ≈ initial	end	Axial load in N ≈

6	6	18	10	25	22	37	1,5	5,5	6	11	28	400
6	14	18	10	25	22	45	1,5	5,5	6	11	28	400
8	8	20	12	31	25	44	2	6,5	8	15	29	500
8	18	20	12	31	25	54	2	6,5	8	15	29	500

Filter combination produces no result.

Specification

SteelST

Knob
Plastic (Polyamide PA)

RoHS

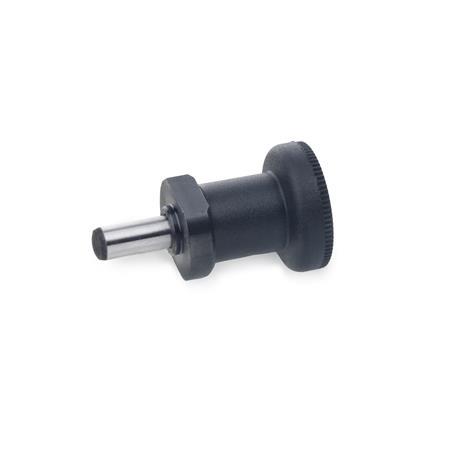

Indexing plungers GN 607.4 are designed for welded fixing, in particular for use in steel square tubings.

The lug d₂ is intended for positioning.

The plastic knob with the in-moulded indexing pin is driven on after the welding process.

RoHS compliant: Info

Weight:

PDF not available

d₁ Plunger -0,02/-0,05 Bore +0,30/+0,25	l₁	b	d₂ -0,02/-0,1	d₃	d₄	l₂	l₃	l₄	l₅ Stroke	Spring load in N ≈ initial	end	Axial load in N ≈

6	6	18	10	25	22	37	1,5	5,5	6	11	28	400
6	14	18	10	25	22	45	1,5	5,5	6	11	28	400
8	8	20	12	31	25	44	2	6,5	8	15	29	500
8	18	20	12	31	25	54	2	6,5	8	15	29	500
