with Limit Switch

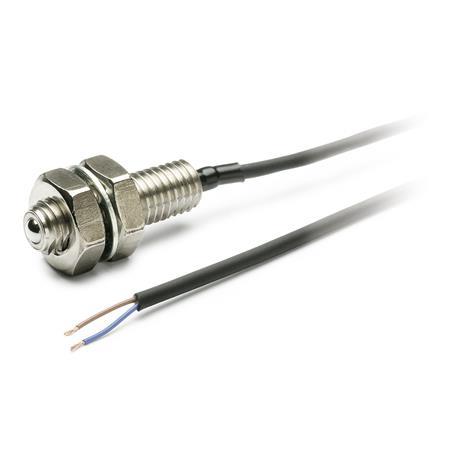

GN 615.7 Spring Plungers
Type
| S | Normally open |
| O | Normally closed |

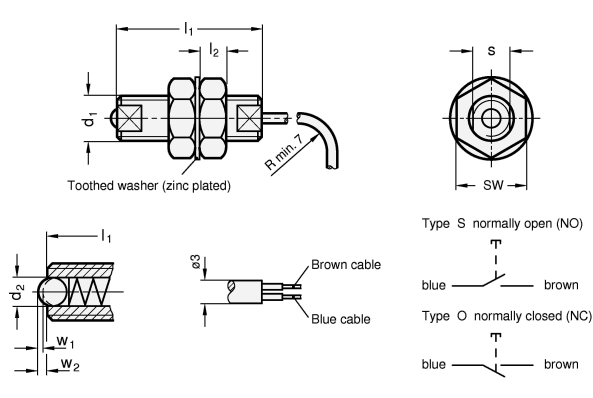

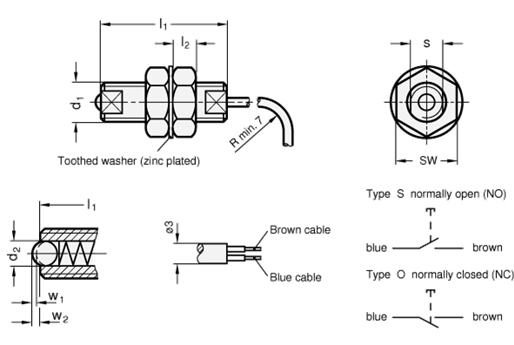

| d1 | d2 | l1 | s | l2 | A/F | w1 ±0,1 Switching stroke | w2 ±0,1 Spring compression | Spring load in N ≈ initial | end |
|---|---|---|---|---|---|---|---|---|---|
| M 6 | 3 | 33 | 5 | 3,5 | 10 | 0,3 | 0,8 | 6 | 13 |
| M 8 | 4 | 36 | 7 | 5 | 13 | 0,5 | 1 | 8 | 16 |
| M 10 | 5 | 40 | 8 | 6 | 17 | 0,7 | 1,2 | 10 | 20 |
Filter combination produces no result.
Specification
Screw
Steel, nickel plated
Ball
Steel, hardened
Hexagon nuts
Steel, nickel plated
Limit switch
Supply cable PVC:
Protection class IP 40
RoHS
Steel, nickel plated
Ball
Steel, hardened
Hexagon nuts
Steel, nickel plated
Limit switch
- Voltage: 5 ... 24 V DC
- Switching load recom.: 5 ... 10 mA
- Switching load:20 mA DC max.
- Life expectancy:
3 millions operations - Temperature range:
-10 °C ... +80 °C
Supply cable PVC:
- Ø 3; 2 phase, ≈2 meters long
- Max. tensile load 20 N
- Gray for Type S (normally open)
Black for Type O (normally closed)
Protection class IP 40
RoHS
Information
Spring plungers GN 615.7 are used for end stops as well as contacts.
Simultaneously an electrical control signal can be released from the built-in limit switch.
see also...
| How to order |
| ||||
GN 615.7-M8-S |
