for Leveling Feet GN 148
GN 148.2 Rubber Pads
Type
| A | For two-hole flange (d1=60/90/113) |
| B | For four-hole flange (d1=112/126) |
| d1 Ø Leveling foot GN 148 | l1 Type A | l2 Type B | d2 Type A | d3 | m1 Type A | m2 Type B | s |
|---|---|---|---|---|---|---|---|
| 60 | 128 | - | 78 | 65 | 110 | - | 3 |
| 90 | 170 | - | 110 | 90 | 140 | - | 3 |
| 113 | 216 | 168 | 150 | 120 | 184 | 132 | 4 |
| 126 | - | 184 | - | 150 | - | 150 | 4 |
Filter combination produces no result.
Specification
Information

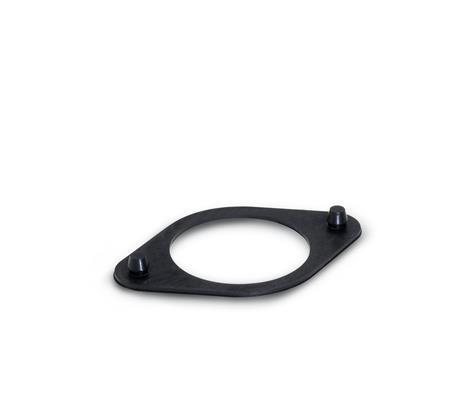

Rubber pads GN 148.2 in connection with GN 148 leveling feet are used for setting up machines and units if no firm bolt connection to the ground is required.
To be fixed to the leveling foot, they are snapped into the attachment bore holes of the flanges. Small pimples at the bottom face of the rubber pads enhance the stability.
| How to order |
| ||||
GN 148.2-170-A |
