with Releasing Button, Zinc Die Casting, Bushing Steel Zinc Plated

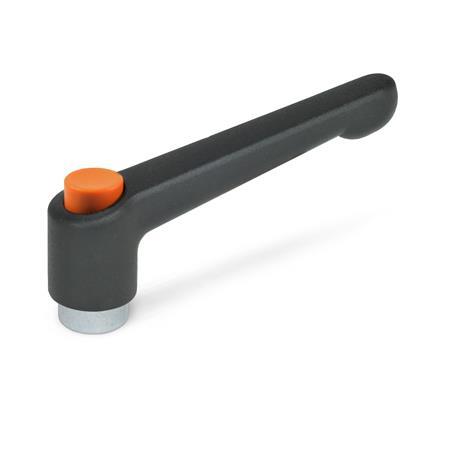

GN 303.2 Adjustable Hand Levers
| l1 | d1 | d2 | d3 | h1 | h2 | h3 | h4 Stroke | t min. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 30 | M 4 | M 5 | M 6 | 10 | 13 | 26,5 | 4 | 31 | 3,5 | 9 |
| 45 | M 4 | M 5 | M 6 | 10 | 13 | 26,5 | 4 | 35 | 3,5 | 9 |
| 63 | M 6 | M 8 | - | 13,5 | 17,5 | 32,5 | 6,5 | 45 | 4 | 11 |
| 78 | M 8 | M 10 | - | 16 | 21 | 37,5 | 8 | 55 | 4 | 14 |
Filter combination produces no result.
Specification
Handle
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Releasing button
Plastic
Black, RAL 9005S
Orange, RAL 2004O
Gray, RAL 7035G
Bushing
Steel
Zinc plated, blue passivated
RoHS
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Releasing button
Plastic
Black, RAL 9005S
Orange, RAL 2004O
Gray, RAL 7035G
Bushing
Steel
Zinc plated, blue passivated
RoHS
On request
Handle in colors of GN 300
Information
Adjustable hand levers GN 303.2 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
The releasing button is a design element that offers an easy disengagement. Its use is limited to applications where dismantling of the lever for installation is not required.
| How to order |
| ||||||||
GN 303.2-78-M10-SW-G |
