Duroplast

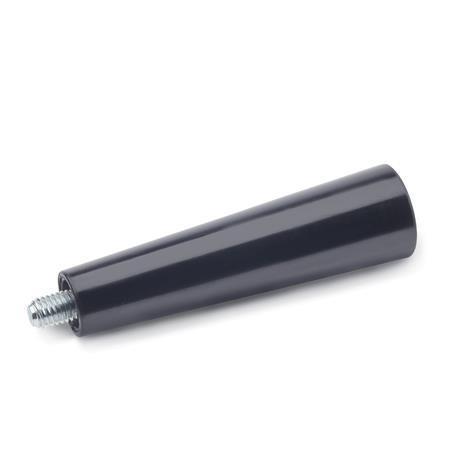

GN 203 Fixed Conical Handles
| d1 | d2 | d3 | l1 | l2 |
|---|---|---|---|---|
| 12 | M 4 | 9 | 40 | 8 |
| 15 | M 5 | 11 | 50 | 7 |
| 18 | M 6 | 13 | 64 | 8 |
| 21 | M 6 | 15 | 72 | 10 |
| 21 | M 8 | 15 | 72 | 10 |
| 25 | M 8 | 17 | 90 | 10 |
| 26 | M 10 | 20 | 100 | 12 |
| 33 | M 12 | 25 | 124 | 14 |
Filter combination produces no result.
Specification
Plastic
Duroplast (Phenolic PF)
Spindle
Steel
Zinc plated, blue passivated
RoHS
Duroplast (Phenolic PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Spindle
Steel
Zinc plated, blue passivated
RoHS
Information
Fixed conical handles GN 203 are suitable for applications where the handle is exposed to low loads. For applications with increased loads we recommend to use cylindrical handles GN 539.
| How to order |
| ||||
GN 203-15-M5 |
