for Clamping Bolts
GN 869.1 Static Holders
Type
| E | for one clamping bolt |
| Z | for two clamping bolts |
| s | d1 | d2 H8/h6 | d3 | h | l1 | l2 | l3 | l4 | m1 | m2 | m3 | m4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | M 8 | 7 | M 5 | 10 | 98,5 | 15 | 30 | 8 | 34 | 53 | 22 | 17 |
| 42 | M 10 | 9 | M 6 | 14 | 140 | 19 | 40 | 8,5 | 51 | 74,4 | 30 | 23 |
| 52 | M 12 | 11 | M 8 | 16 | 168 | 22 | 50 | 12,5 | 62 | 88,5 | 37 | 30 |
| 62 | M 12 | 13 | M 10 | 18 | 192,5 | 22 | 60 | 12,5 | 71,5 | 102 | 44 | 40 |
Filter combination produces no result.
Specification
Steel C 45
Chemically nickel platedNC
Socket cap screws DIN 912,
Centering guide bushings
Steel, blackened
RoHS
Chemically nickel platedNC
Socket cap screws DIN 912,
Centering guide bushings
Steel, blackened
RoHS
Information

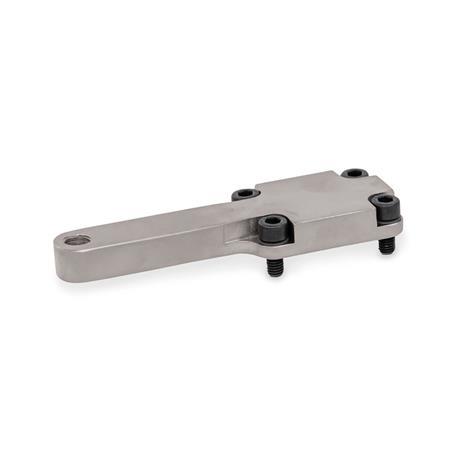

Static holders GN 869.1 have been designed for use with power clamps GN 865.
Static holders for two clamping bolts (type Z) are preferably used in such applications where absolutely rigid clamping of a sheet metal component is essential. For the same purpose ball point screws GN 605 with serrated ball pads are ideally suited.
Socket cap screws and centering guide bushings are included.
| How to order |
| ||||||
GN 869.1-52-E-NC |
