Lockable

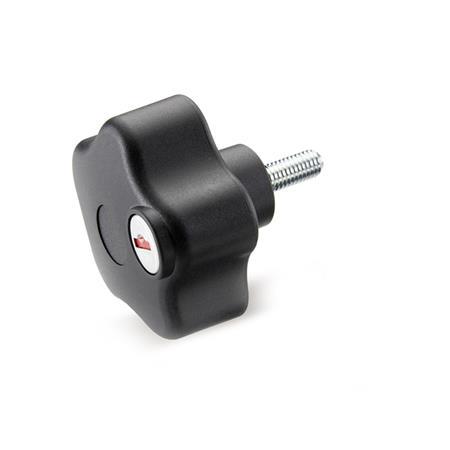

GN 5337.9 Safety Star Knobs with Threaded Stud
ELESA original design VLSK.p
Type
| SU | Lock with different combinations |
| d1 | d2 | Length l | d3 | h1 | h2 ≈ |
|---|---|---|---|---|---|
| 63 | M 8 | 20 | 23 | 44 | 17 |
| 63 | M 10 | 20 | 23 | 44 | 17 |
Filter combination produces no result.
Specification
Knob
Plastic
Technopolymer (Polyamide PA-HP)
Cover flange plastic
with knob ultrasonically welded
Threaded stud
Steel
Zinc plated, blue passivated
Lock mechanism
Zink die casting
Key
Brass, nickel plated
with handle in plastic
RoHS
Plastic
Technopolymer (Polyamide PA-HP)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Cover flange plastic
with knob ultrasonically welded
Threaded stud
Steel
Zinc plated, blue passivated
Lock mechanism
Zink die casting
Key
Brass, nickel plated
with handle in plastic
RoHS
Information
Safety star knobs GN 5337.9 are designed to prevent unauthorised use.
To engage and release, the key must be inserted and turned by 180°, creating a formlock between the handle and the threaded bushing or screw. Turning the key back by 180° will release the connection.
The key can be inserted and pulled off in both end positions.
Two keys per star knob are included with the delivery.
| How to order |
| ||||||||
GN 5337.9-63-M10-20-SU |
RoHS compliant:
-
-
Weight:
-
-
