for Power Clamps Size 32, Inductive Sensor

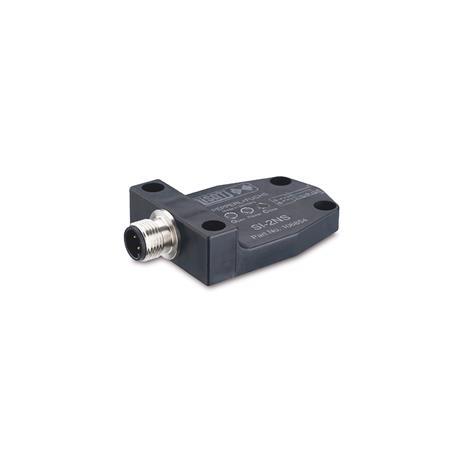

GN 893.2 Proximity Switch

Show filter

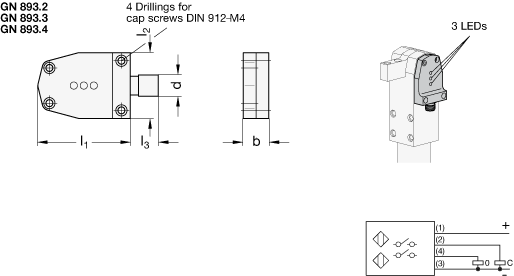

Power clamps	Proximity switch type	b	d Connector 4-pole	l₁ -0,2	l₂	l₃

-- Artikel nicht definiert --	GN 893.2	16	M 12 x 1	57,5	41	10
-- Artikel nicht definiert --	GN 893.2	16	M 12 x 1	57,5	41	10
-- Artikel nicht definiert --	GN 893.2	16	M 12 x 1	57,5	41	10

Filter combination produces no result.

Specification

Voltage range: 10 to 30 VDC

Switch load: 0 to 100 mA

Voltage drop: ≤ 2 V

Temperature range: 0° to 50° C

Protection class: IP 65

LED-Indication:

Green: Operating voltage
Red: Switch position closed
Yellow: Switch position open

Socket cap screws DIN 912
Steel, blackened

https://www.youtube.com/watch?v=FpaDoyV4mDg

IP Protection Classes

RoHS

Accessory

Cable with connector
4-pole, 5 or 10 meters long:
- GN 330-M12x1-4-G-5
- GN 330-M12x1-4-G-10

Information

With proximity switch GN 893.2 power clamps can induce controlled signals. They generally serve for querying the end positions. The LEDs indicate the operating and switch positions.

The proximity switches can be screwed directly on to the power clamps. The position of the switches can be on either side.

A plastic intermediate plate and two socket cap screws M4 are included.
