for Power Clamps Size 20, Inductive Sensor

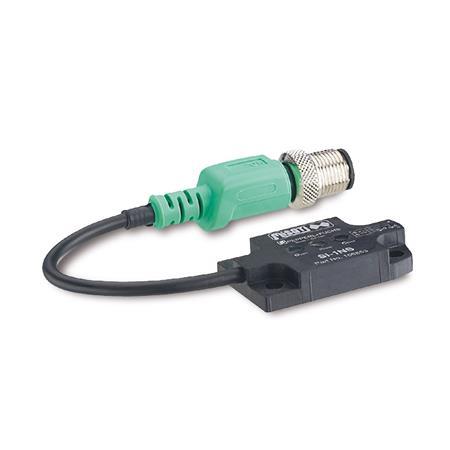

GN 893.1 Proximity Switch

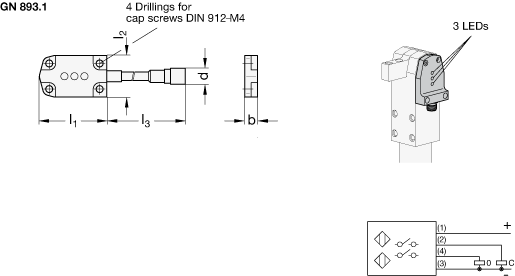

| Power clamps | Proximity switch type | b | d Connector 4-pole | l1 -0,2 | l2 | l3 |
|---|---|---|---|---|---|---|
| -- Artikel nicht definiert -- | GN 893.1 | 8 | M 12 x 1 | 42 | 26 | 110 (PVC-Kabel) |
| -- Artikel nicht definiert -- | GN 893.1 | 8 | M 12 x 1 | 42 | 26 | 110 (PVC-Kabel) |
| -- Artikel nicht definiert -- | GN 893.1 | 8 | M 12 x 1 | 42 | 26 | 110 (PVC-Kabel) |
Filter combination produces no result.
Specification
Voltage range: 10 to 30 VDC
Switch load: 0 to 100 mA
Voltage drop: ≤ 2 V
Temperature range: 0° to 50° C
Protection class: IP 65
LED-Indication:
Socket cap screws DIN 912
Steel, blackened
RoHS
Switch load: 0 to 100 mA
Voltage drop: ≤ 2 V
Temperature range: 0° to 50° C
Protection class: IP 65
LED-Indication:
- Green: Operating voltage
- Red: Switch position closed
- Yellow: Switch position open
Socket cap screws DIN 912
Steel, blackened
RoHS
Accessory
Cable with connector4-pole, 5 or 10 meters long:
- GN 330-M12x1-4-G-5
- GN 330-M12x1-4-G-10
Information
With proximity switch GN 893.1 power clamps can induce controlled signals. They generally serve for querying the end positions. The LEDs indicate the operating and switch positions.
The proximity switch can be screwed directly on to the power clamps. The position of the switches can be on either side.
A plastic intermediate plate and two socket cap screws M4 are included.
| How to order | |
893.1 |
