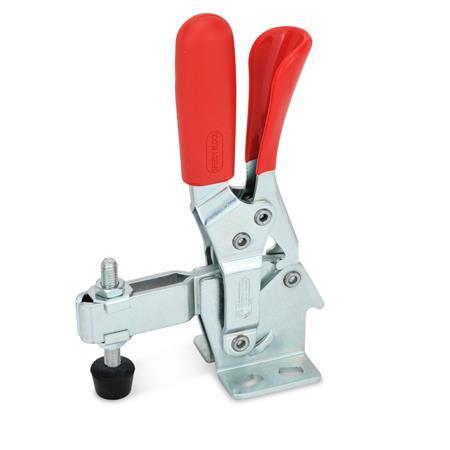

Operating Lever Vertical, with Lock Mechanism, with Horizontal Mounting Base

GN 810.3 Toggle Clamps

Type

CL	Forked clamping arm, with two flanged washers and clamping screw GN 708.1
EL	Solid clamping arm, with clasp for welding
AL	Forked clamping arm, with two flanged washers

Show filter

Size	F_H in N Holding capacity	a ≈	b₁	b₂	b₃	d₁	d₂ ≈	h₁ ≈	h₂	h₃	h₄	h₅

130	1050	28	35	42	6,2	M 6	5,5	142	28	16	25,5	11,3
230	2000	40	43	45	8,5	M 8	6,5	168	33,5	18	30	9,5

Filter combination produces no result.

Size	l₁ ≈ Type AL Type CL	Type EL	l₂ ≈	l₃ max.	l₄	m₁	m₂	m₃	m₄	r ≈	s₁	s₂	w Adjustable range

130	85	86	42	54	55	12,5	19	27	29	79,5	2,5	5	17,5
230	110,5	112	58	73	68	18	21	32	32	104	3	6	20

Filter combination produces no result.

Specification

Steel

Case-hardened steel C10
Zinc plated, blue passivated
Bearing pins tempered
Bearing rivets case-hardened

All moving parts
Lubricated with special grease

Hand grip
High quality, oil resistant, red plastic

Clamping screw GN 708.1, type A

Steel, zinc plated
Rubber tip 85 Shore A

RoHS

Accessory

Clamping Screws

Holders for Clamping Screws GN 801 (for Type AL)

Holders for Clamping Screws GN 809 (for Type EL)

Clamping Arm Extenders GN 801.1 (for Type AL)

Clamping Arm Extenders GN 801.2 (for Type EL)

Clamping Arm Extenders GN 809.1 (for Type EL)

Information

Toggle clamps GN 810.3 are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations; and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a single hand to allow for opening / closing.

They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Toggle clamps in the U-bar version with two flanged washers (type AL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type CL.

Type EL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 holders for clamping screws to hold the work piece in place.
