for Push-Pull Clamping

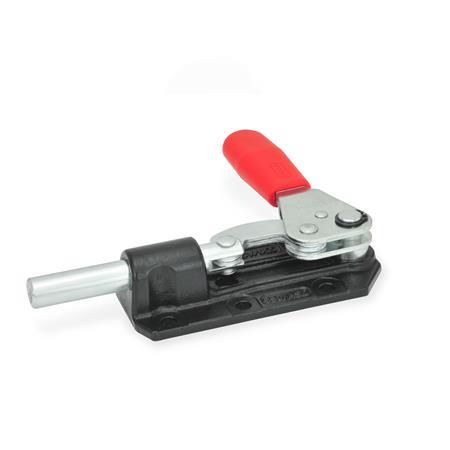

GN 844 Push-Pull Type Toggle Clamps, Brass, steel
Type
| ASD | Clamping by turning handle counter-clockwise |
| ASS | Clamping by turning handle clockwise |
| Size | FH in N Holding capacity | a | b | d1 | d2 | d3 | h1 ≈ | h2 | l1 ≈ |
|---|---|---|---|---|---|---|---|---|---|
| 70 | 900 | 12 | 19,5 | 8,5 | M 6 | 4,3 | 49 | 36 | 86 |
| 160 | 1300 | 15 | 25 | 11 | M 6 | 5,5 | 79 | 46 | 117 |
| 550 | 4500 | 20 | 32 | 14 | M 8 | 7 | 113 | 55 | 165 |
Filter combination produces no result.
| Size | l2 ≈ | l3 ≈ | m1 | m2 | m3 | m4 | s | t | w Stroke |
|---|---|---|---|---|---|---|---|---|---|
| 70 | 77 | 22 | 26 | 26 | 13 | - | 6 | 12 | 20 |
| 160 | 107 | 32 | 36,5 | 33,5 | 11,5 | - | 7 | 12 | 30 |
| 550 | 153 | 42 | 35 | 41 | 15 | 41 | 7 | 16 | 42 |
Filter combination produces no result.
Specification
Body
Brass
Parts in sheet metal
Plunger
Steel St 37
Zinc plated, blue passivated
All moving parts
Lubricated with special grease
Hand grip
High quality, oil resistant, red plastic
RoHS
Brass
- Forged
- Manganese phosphated
Parts in sheet metal
- Case-hardened Steel C10
- Zinc plated, blue passivated
Plunger
Steel St 37
Zinc plated, blue passivated
All moving parts
Lubricated with special grease
Hand grip
High quality, oil resistant, red plastic
RoHS
Accessory
Clamping ScrewsInformation
Push-pull type toggle clamps GN 844 are known for their low height in all clamping positions. They can be used to achieve very high holding forces thanks to their massive and sturdy body.
see also...
| How to order |
| ||||
GN 844-70-ASS |
