Plastic, Cover Cap Colored

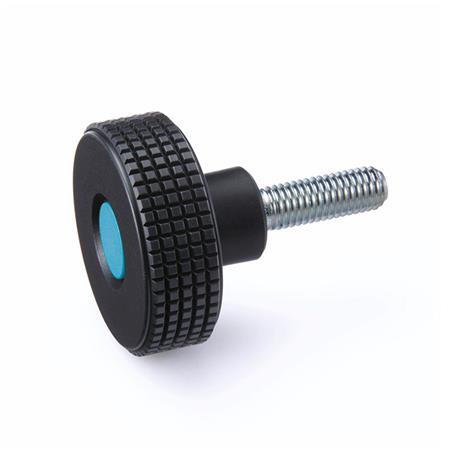

GN 534 Knurled Screws, threaded stud steel, zinc plated
ELESA original design MBT-p

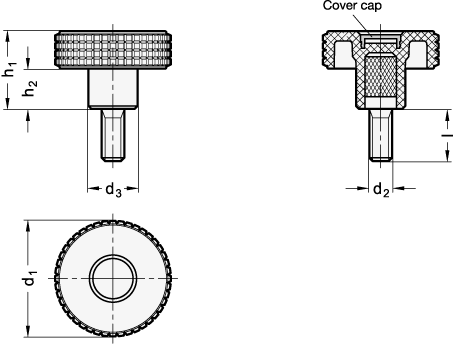

| d1 Nominal dimension | Actual dimension | d2 | Length l | d3 | h1 | h2 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 31 | M 5 | 10 | 20 | 40 | - | - | - | 15 | 24 | 11,5 |
| 32 | 31 | M 6 | 10 | 16 | 20 | 25 | 30 | 40 | 15 | 24 | 11,5 |
| 40 | 39,5 | M 6 | 10 | 16 | 20 | 30 | 40 | - | 17 | 26,5 | 12,5 |
| 40 | 39,5 | M 8 | 16 | 20 | 25 | 30 | 40 | 50 | 17 | 26,5 | 12,5 |
| 50 | 50 | M 8 | 16 | 30 | 50 | - | - | - | 20 | 33 | 16 |
| 50 | 50 | M 10 | 20 | 30 | 50 | - | - | - | 20 | 33 | 16 |
| 60 | 61 | M 10 | 20 | 30 | 50 | - | - | - | 23 | 39 | 18,5 |
| 60 | 61 | M 12 | 20 | 30 | 50 | - | - | - | 23 | 39 | 18,5 |
| 70 | 70 | M 12 | 30 | 50 | - | - | - | - | 24 | 42 | 20,5 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polypropylen PP)
Threaded stud
Steel
Zinc plated, blue passivated
Color of the cover cap
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Technopolymer (Polypropylen PP)
- Reinforced, shock-resistant
- Temperature resistant up to 90 °C
- Black, RAL 9005, matte finishSW
Threaded stud
Steel
Zinc plated, blue passivated
Color of the cover cap
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Information
The unique profile on the rim (small squares) of the knurled screws GN 534 is characteristic of its form and the function.
| How to order |
| ||||||||||
GN 534-32-M6-30-SW-DRT |
