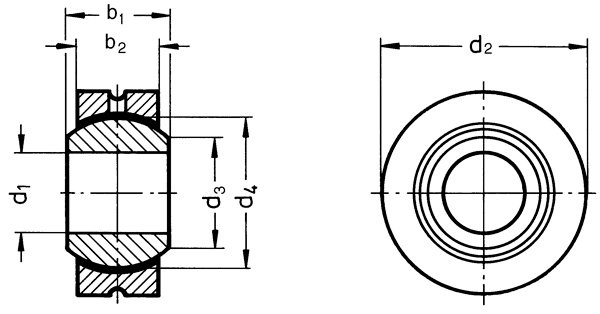

DIN 648-K
Gelenkform
| SS | |
| SSA | |
| SSE |
| d1 | d2 | b1 | b2 | d3 | d4 | w |
|---|---|---|---|---|---|---|
| 2 | 9 | 48 | 36 | 36 | 600 | 16 |
| 3 | 12 | 6 | 45 | 52 | 793 | 15 |
| 4 | 14 | 7 | 525 | 65 | 952 | 14 |
| 5 | 16 | 8 | 6 | 77 | 1111 | 13 |
| 6 | 18 | 9 | 675 | 90 | 1270 | 13 |
| 8 | 22 | 12 | 9 | 104 | 1588 | 14 |
| 10 | 26 | 14 | 105 | 129 | 1905 | 13 |
| 12 | 30 | 16 | 12 | 154 | 2223 | 13 |
| 14 | 34 | 19 | 135 | 168 | 2540 | 16 |
| 16 | 38 | 21 | 15 | 194 | 2858 | 15 |
| 18 | 42 | 23 | 165 | 219 | 3175 | 15 |
| 20 | 46 | 25 | 18 | 244 | 3492 | 15 |
| 22 | 50 | 28 | 20 | 258 | 3810 | 15 |
| 25 | 56 | 31 | 22 | 296 | 4285 | 15 |
| 30 | 66 | 37 | 25 | 348 | 5080 | 17 |
Filter combination produces no result.
Specification
Information
| How to order |
| ||||||
DIN 648-K-10-SSA |
