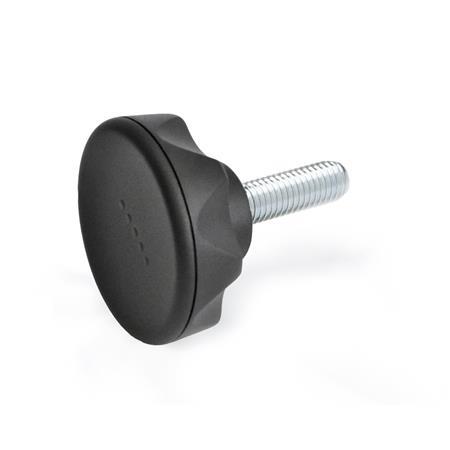

GN 636.4 Star Knobs with Threaded Stud, threaded stud steel, zinc plated
ELESA original design ELK.p
| d1 | d2 | Length l | d3 | h1 | h2 | ||
|---|---|---|---|---|---|---|---|
| 45 | M 8 | 20 | 30 | - | 21 | 26 | 10 |
| 45 | M 10 | 20 | 30 | 40 | 21 | 26 | 10 |
| 56 | M 8 | 20 | 30 | 40 | 26,5 | 29 | 11 |
| 56 | M 10 | 20 | 30 | 40 | 26,5 | 29 | 11 |
| 56 | M 12 | 30 | 40 | 50 | 26,5 | 29 | 11 |
| 70 | M 10 | 30 | 40 | 50 | 32,5 | 35 | 13 |
| 70 | M 12 | 30 | 40 | 50 | 32,5 | 35 | 13 |
Filter combination produces no result.
Specification
Plastic
Star knob upper part:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
Star knob upper part
is ultrasonically welded to lower part
Threaded stud
Zinc plated, blue passivated
RoHS
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black-gray, similar to RAL 7021, matte
Star knob upper part:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
Star knob upper part
is ultrasonically welded to lower part
Threaded stud
Zinc plated, blue passivated
RoHS
Information
The design of the star knobs GN 636.4 matches the product family Ergostyle®.
see also...
| How to order |
| ||||||||
GN 636.4-56-M10-30-DSG |
This could also be interesting...
RoHS compliant:
-
-
Weight:
-
-
PDF not available
