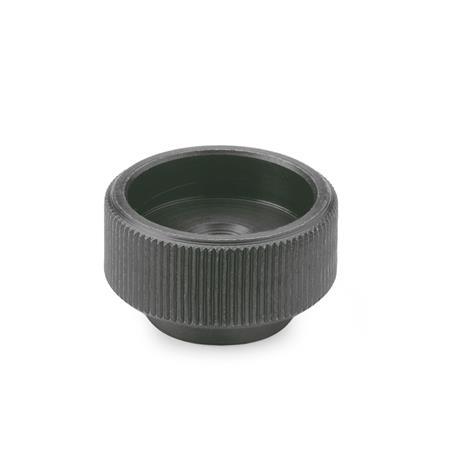

Steel, Blackened
DIN 6303 Knurled Nuts
Type
| A | without dowel hole |
| B | with dowel hole |
| d1 Thread | d2 H7 Bore | d3 | d4 | d5 H11 | e | h | k | t |
|---|---|---|---|---|---|---|---|---|
| M 5 | B 5 | 14 | 20 | 1,5 | 2,5 | 12 | 8 | 7 |
| M 6 | B 6 | 16 | 24 | 1,5 | 2,5 | 14 | 10 | 8 |
| M 8 | B 8 | 20 | 30 | 2 | 3 | 17 | 12 | 10 |
| M 10 | B 10 | 28 | 36 | 3 | 4 | 20 | 14 | 12 |
| M 12 | B 12 | 32 | 40 | 4 | 4 | 24 | 16 | 16 |
Filter combination produces no result.
Specification
Information
The dowel bore d5 in the DIN 6303 knurled nut is designed for the use of clamping or notch pins.
DIN 6303 knurled nuts with H7 bore and the size M12 are not provided on the official standard sheet. In addition, the knurling divisions are larger than the DIN standard for better grip.
| How to order |
| ||||
DIN 6303-M8-A |
