with Rubber Pad

GN 30 Leveling Feet

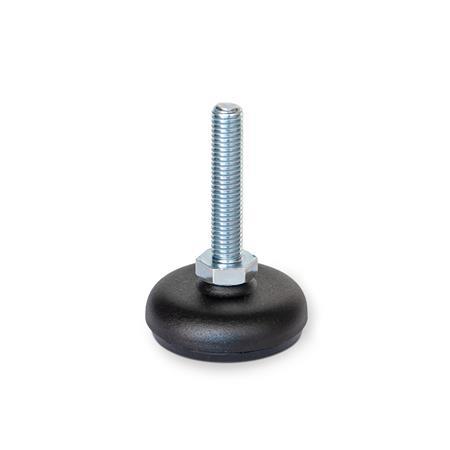

Leveling Feet GN 30 thumbnail

Zoom

Zoom

Leveling Feet GN 30 sketch

Type (Base)

A1	Steel, zinc plated, rubber inlaid, black
A2	Steel, zinc plated, rubber inlaid, white
A5	Steel, plastic coated black, rubber inlaid, black

Version (Screw)

S	Without nut, external hexagon at the bottom
SK	With nut, external hexagon at the bottom
U	Without nut, hexagon socket at the top and wrench flat at the bottom
UK	With nut, hexagon socket at the top and wrench flat at the bottom
X	External hexagon with internal thread

Show filter

d₁	d₂	l₁ Version S / SK				Version U / UK						l₇ Version X	h₁	h₂	s

50	M 8	40	50	63	-	-	-	-	-	-	-	37	14,5	3,5	3
50	M 10	50	60	80	100	-	-	-	-	-	-	40	14,5	3,5	3
50	M 12	60	80	100	125	-	-	-	-	-	-	43	14,5	3,5	3
50	M 16	-	-	-	-	75	100	125	150	200	250	49	14,5	3,5	3
60	M 8	40	50	63	-	-	-	-	-	-	-	38	16	4	3
60	M 10	50	60	80	100	-	-	-	-	-	-	41	16	4	3
60	M 12	60	80	100	125	-	-	-	-	-	-	45	16	4	3
60	M 16	-	-	-	-	75	100	125	150	200	250	50	16	4	3
80	M 8	40	50	63	-	-	-	-	-	-	-	40	18	5	3
80	M 10	50	60	80	100	-	-	-	-	-	-	43	18	5	3
80	M 12	60	80	100	125	-	-	-	-	-	-	47	18	5	3
80	M 16	-	-	-	-	75	100	125	150	200	250	52	18	5	3
80	M 20	-	-	-	-	75	100	125	150	200	250	60	18	5	3
80	M 24	-	-	-	-	100	125	150	200	300	-	-	18	5	3
100	M 8	40	50	63	-	-	-	-	-	-	-	42	20	6	3
100	M 10	50	60	80	100	-	-	-	-	-	-	45	20	6	3
100	M 12	60	80	100	125	-	-	-	-	-	-	49	20	6	3
100	M 16	-	-	-	-	75	100	125	150	200	250	54	20	6	3
100	M 20	-	-	-	-	75	100	125	150	200	250	62	20	6	3
100	M 24	-	-	-	-	100	125	150	200	300	-	-	20	6	3
120	M 20	-	-	-	-	100	125	150	200	250	-	65	22	6	4
120	M 24	-	-	-	-	100	125	150	200	300	-	-	22	6	4
120	M 30	-	-	-	-	100	125	150	200	300	-	-	22	6	4

Filter combination produces no result.

d₁	d₂	h₃	h₄	A/F₁	A/F₂	A/F₃	A/F₇	t

50	M 8	23	-	17	-	-	14	8
50	M 10	23	-	17	-	-	14	10
50	M 12	23	-	17	-	-	17	12
50	M 16	-	29	-	12	8	22	16
60	M 8	24	-	17	-	-	14	8
60	M 10	24	-	17	-	-	14	10
60	M 12	24	-	17	-	-	17	12
60	M 16	-	30	-	12	8	22	16
80	M 8	26	-	17	-	-	14	8
80	M 10	26	-	17	-	-	14	10
80	M 12	26	-	17	-	-	17	12
80	M 16	-	32	-	12	8	22	16
80	M 20	-	33	-	15	10	27	20
80	M 24	-	36	-	19	12	-	-
100	M 8	28	-	17	-	-	14	8
100	M 10	28	-	17	-	-	14	10
100	M 12	28	-	17	-	-	17	12
100	M 16	-	34	-	12	8	22	16
100	M 20	-	35	-	15	10	27	20
100	M 24	-	38	-	19	12	-	-
120	M 20	-	39	-	15	10	27	20
120	M 24	-	42	-	19	12	-	-
120	M 30	-	46	-	24	12	-	-

Filter combination produces no result.

Specification

Base plate, steel sheet metal

Type A1, A2:
Steel, zinc plated, blue passivated
Type A5:
Steel, powder coated
Black, RAL 9005

Threaded stem
Steel, zinc plated, blue passivated

Hexagon nut ISO 4032
Steel, zinc plated, blue passivated

Rubber pad, inlaid

Black: NBR (Perbunan^®)
80±5 Shore A
White: TPE (Santoprene^®)
80±5 Shore A

Load rating of leveling feet GN 30 / GN 32

Elastomer Characteristics

RoHS

Information

Leveling feet GN 30 will be delivered mounted and are not removable.

How to order

1	d₁
2	d₂
3	l₁ (l₇)
4	Type (Base)
5	Version (Screw)

GN 30-120-M30-125-A1-UK
