for Wedge Clamps GN 920.1
GN 920.2 Pull-Down Plates

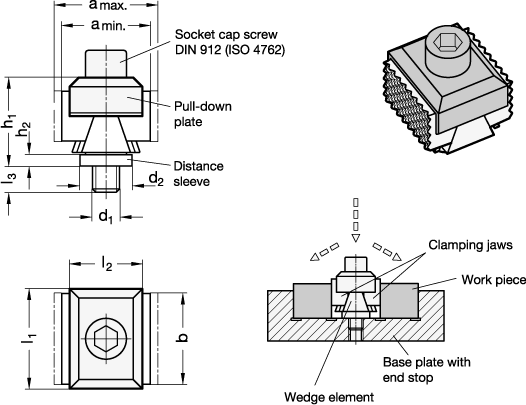

| l1 | l2 | d1 | a Type GA Type GL max. | min. | Type PR Type RF max. | min. | b | d2 Ø | h1 ≈ | h2 | Length l3 max. | for wedge clamps GN 920.1 with: d | b |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 32 | M 8 | 44,5 | 39,5 | 39,5 | 34,5 | 21 | 18 | 27,5 | 4 | 7,5 | M 8 | 21 |
| 29 | 32 | M 8 | 44,5 | 39,5 | 39,5 | 34,5 | 25 | 18 | 27,5 | 4 | 7,5 | M 8 | 25 |
| 36 | 32 | M 8 | 44,5 | 39,5 | 39,5 | 34,5 | 32 | 18 | 27,5 | 4 | 7,5 | M 8 | 32 |
| 44 | 32 | M 8 | 44,5 | 39,5 | 39,5 | 34,5 | 40 | 18 | 27,5 | 4 | 7,5 | M 8 | 40 |
| 44 | 32 | M 12 | 45,5 | 40 | 45,5 | 40 | 40 | 23 | 38 | 5 | 11,5 | M 12 | 40 |
| 54 | 32 | M 8 | 44,5 | 39,5 | 39,5 | 34,5 | 50 | 18 | 27,5 | 4 | 7,5 | M 8 | 50 |
| 54 | 32 | M 12 | 45,5 | 40 | 45,5 | 40 | 50 | 23 | 38 | 5 | 11,5 | M 12 | 50 |
Filter combination produces no result.
Specification
Steel
Blackened
Socket cap screw DIN 912 (ISO 4762)
Distance sleeve
Steel
RoHS
Blackened
Socket cap screw DIN 912 (ISO 4762)
Distance sleeve
Steel
RoHS
Information

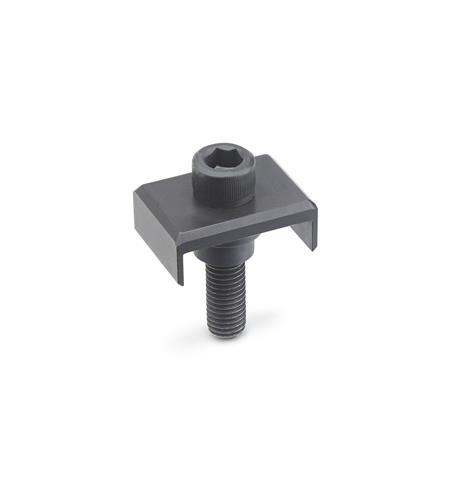

Pull-down plates GN 920.2 allow wedge clamps GN 920.1 to clamp easily with pull-down effect.
The socket cap screw DIN 912 and the distance sleeve are included.
| How to order |
| ||||||
GN 920.2-36-32-M8 |
