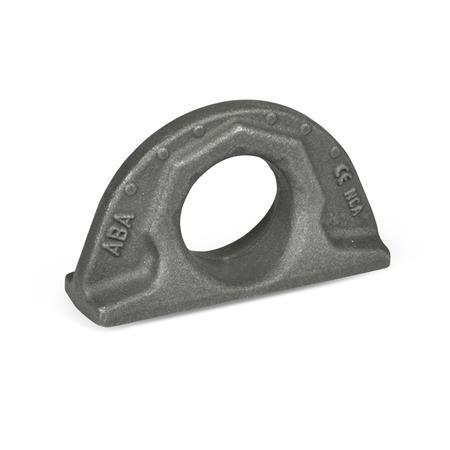

GN 589 Lifting Points

Show filter

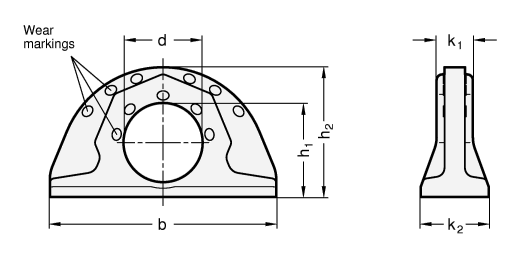

b	d	h₁	h₂	k₁	k₂	Nominal Load in t (WLL)	max. permitted lashing force in daN (LC)

100	35	41,5	57	16	30	1,6	3200
137	50	59	80	23	41	3,2	6400
172	60	71,5	99	27	51	5	10000
228	80	95	130	38	70	10	20000

Filter combination produces no result.

Specification

Steel German Material No. 1.6541

Forged
High-tensile tempered
100 % electro magnetic tensile tested to EN 1677
Phosphated

RoHS

Information

Lifting points GN 589 are distinguished for their very low dimensions. They provide high dynamic and static strength and can be load from any direction with approved safety (safety factor 4) for all loading directions.

The rated load carrying capacity listed in the above table is clearly marked on the lifting point. It applies to the most unfavourable load application of the load types listed opposite.

Lifting points GN 589 comply with Mechanical Engineering Directive 2006 / 42 / EG.

The operating instruction contains further guidelines and is included with every lifting point (see also at www.ganternorm.com/en/service).
