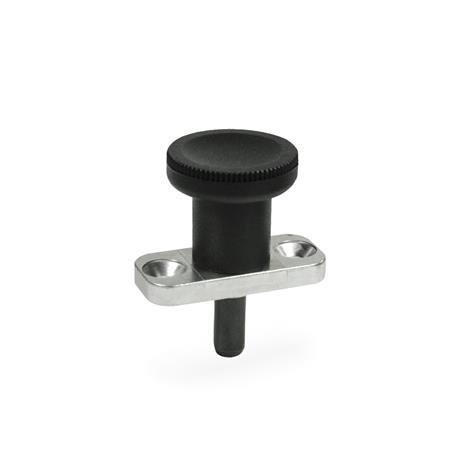

GN 608.1 Indexing Plungers, plunger pin steel

Indexing Plungers plunger pin steel GN 608.1 thumbnail

Indexing Plungers plunger pin steel GN 608.1 sketch

Show filter

d₁ Plunger -0,02/-0,05 Bore H7	l₁	b₁	b₂	d₂ -0,02/-0,1	d₃	d₄	d₅	k	l₂	l₃ -0,15	l₄	l₅ Stroke	Spring load in N ≈ Initial	end	Axial load in N

6	6	40	18	10	25	4,3	8,3	30	37	2,5	4,5	6	9	25	400
6	14	40	18	10	25	4,3	8,3	30	45	2,5	4,5	6	9	25	400
8	8	46	20	12	31	5,3	10,4	34	44	2,5	5,5	8	13	26	500
8	18	46	20	12	31	5,3	10,4	34	54	2,5	5,5	8	13	26	500

Filter combination produces no result.

Specification

Guide
Zinc die casting
Zinc plated, blue passivated

Plunger pin
Steel, hardened

Single components
Steel

Knob
Plastic (Polyamide PA)

Black, matte
Not removable

Load Rating Information

ISO Fundamental Tolerances

Plastic Characteristics

RoHS

Information

Indexing plungers GN 608.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

Indexing plungers GN 608.1 are distinguished for their small dimensions. The locking tab is integrated into the knob thus giving reliable operation at all times.
