Threaded Stud Stainless Steel

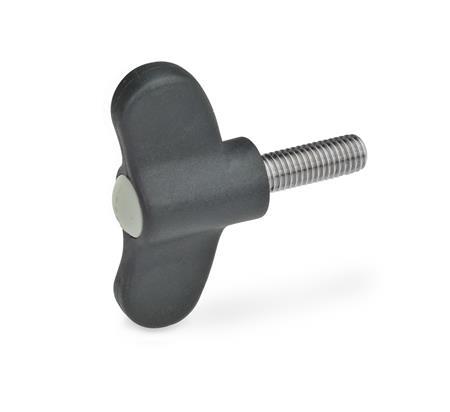

GN 633.1 Wing Screws
ELESA original design EWN.SST-p
| d1 | d2 | Length l | d3 | b | h1 | h2 | ||
|---|---|---|---|---|---|---|---|---|
| 40 | M 5 | 16 | 20 | - | 13,5 | 6 | 20 | 4 |
| 40 | M 6 | 20 | 30 | - | 13,5 | 6 | 20 | 4 |
| 40 | M 8 | 20 | 30 | 40 | 13,5 | 6 | 20 | 4 |
| 48 | M 6 | 20 | 30 | - | 13,5 | 7 | 24 | 5,5 |
| 48 | M 8 | 20 | 30 | 40 | 13,5 | 7 | 24 | 5,5 |
| 55 | M 8 | 20 | 30 | 40 | 16 | 8 | 28 | 6,5 |
| 63 | M 10 | 20 | 30 | - | 19 | 9 | 32 | 7,5 |
| 70 | M 10 | 20 | 30 | 40 | 20 | 10 | 36 | 8 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Threaded stud
Stainless steel AISI 303
Color of the cover cap:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black-gray, similar RAL 7021, matte
Threaded stud
Stainless steel AISI 303
Color of the cover cap:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Information
Design and handling of the wing screws GN 633.1 comply with the requirements and claims of the product family Ergostyle®.
see also...
| How to order |
| ||||||||
GN 633.1-55-M8-30-DOR |
